LTC4444EMS8EPBF - Analog Devices

Description: AEC-Q100 Qualified for Automotive Applications n Bootstrap Supply Voltage to 114V n Wide VCC Voltage: 7.2V to 13.5V n Adaptive Shoot-Through Protection n 2.5A Peak TG Pull-Up Current n 3A Peak BG Pull-Up Current n 1.2Ω TG Driver Pull-Down n 0.55Ω BG Driver Pull-Down n 5ns TG Fall Time Driving 1nF Load n 8ns TG Rise Time Driving 1nF Load n 3ns BG Fall Time Driving 1nF Load n 6ns BG Rise Time Driving 1nF Load n Drives Both High and Low Side N-Channel MOSFETs n Undervoltage Lockout n Thermally En

Download LTC4444EMS8EPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

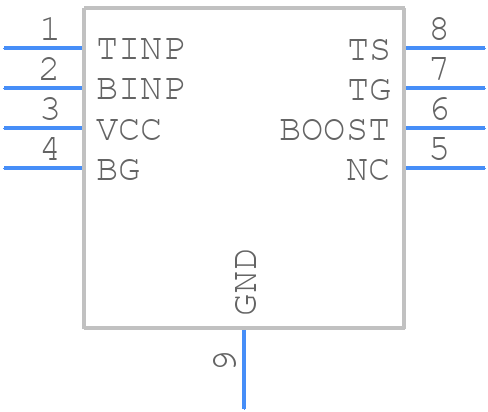

LTC4444EMS8EPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4444EMS8EPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LTC4444EMS8EPBF - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LTC4444EMS8EPBF Details

  • Manufacturer Part Number:

    LTC4444EMS8EPBF

  • Manufacturer:

    Analog Devices Inc

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LTC4444EMS8EPBF Overview

Use the download button to access the LTC4444EMS8EPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC44, or try a keyword search, such as MOSFET Drivers
