LTC4444HMS8E-5#TRPBF - Analog Devices

Description: High Voltage Synchronous N-Channel MOSFET Driver

Download LTC4444HMS8E-5#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

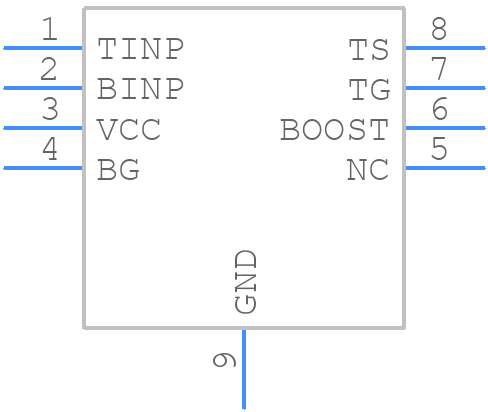

Symbol
LTC4444HMS8E-5#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4444HMS8E-5#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LTC4444HMS8E-5#TRPBF - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LTC4444HMS8E-5#TRPBF Details

  • Manufacturer Part Number:

    LTC4444HMS8E-5#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Peak Current Limit-Nom:

    1.4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.52 mA

  • Supply Voltage-Max:

    13.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    6 V

  • Supply Voltage1-Max:

    114 V

  • Supply Voltage1-Min:

    5 V

  • Supply Voltage1-Nom:

    6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.045 µs

  • Turn-on Time:

    0.06 µs

  • Width:

    3 mm

LTC4444HMS8E-5#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4444HMS8E-5 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power supply bypass capacitors. Additionally, it's recommended to use a symmetrical layout to minimize thermal gradients and ensure even heat dissipation.
  • To ensure proper thermal management, it's recommended to attach a heat sink to the device, especially in high-power applications. The heat sink should be designed to provide good thermal conductivity and should be attached using a thermally conductive adhesive or thermal interface material. Additionally, the device should be placed in a well-ventilated area to ensure good airflow.
  • Operating the LTC4444HMS8E-5 beyond its recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even device failure. It's essential to ensure that the device is operated within its recommended voltage, current, and temperature ranges to ensure optimal performance and longevity.
  • To troubleshoot issues with the LTC4444HMS8E-5, start by verifying that the device is properly powered and that the input and output voltages are within the recommended ranges. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to verify the output waveform and ensure that it's within the expected specifications. If the issue persists, consult the datasheet and application notes for further guidance or contact Analog Devices' technical support.
  • Using a different package type or grade of the LTC4444HMS8E-5 can affect its performance, power dissipation, and thermal management. For example, a different package type may have a different thermal resistance, which can impact the device's ability to dissipate heat. It's essential to consult the datasheet and application notes to ensure that the chosen package type or grade meets the specific requirements of the application.
