LTC488CSW#PBF - Analog Devices

Description: LTC488CSWPBF LTC488CSW#PBF, Quad Line Receiver, RS-485, Differential 5 V 16-Pin SOIC W

Download LTC488CSW#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

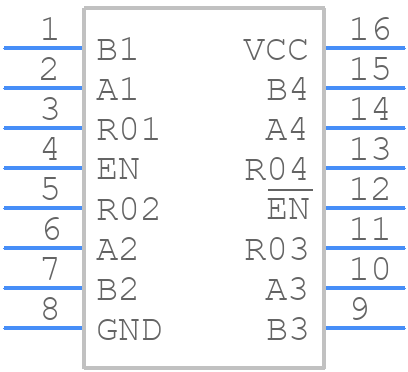

LTC488CSW#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC488CSW#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SW(SOP)
click to zoom
3D Models
LTC488CSW#PBF - Analog Devices - 3D model - Small Outline Packages - SW(SOP)
click to zoom

LTC488CSW#PBF Details

  • Manufacturer Part Number:

    LTC488CSW#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, LEAD FREE, PLASTIC, SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1620 (SW16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    55 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

LTC488CSW#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC488CSW involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure accuracy, calibrate the temperature sensor using a precision temperature source, and ensure that the sensor is properly thermally coupled to the device being measured. Also, use a low-noise, low-impedance connection to the sensor.
  • The maximum cable length for the SPI interface of the LTC488CSW is approximately 10 inches (25 cm) to minimize signal degradation and ensure reliable communication.
  • Yes, the LTC488CSW has built-in noise filtering and is designed to operate in noisy industrial environments. However, it's still important to follow proper PCB layout and grounding practices to minimize noise coupling.
  • To troubleshoot communication issues, check the SPI clock frequency, ensure proper slave select signaling, and verify that the device is properly powered and configured. Use a logic analyzer or oscilloscope to debug the SPI signals.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC488CSW#PBF Overview

Use the download button to access the LTC488CSW#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC48, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
