- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LTC489CSW
- Part Number LTC489CSW
- Manufacturer Analog Devices
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SW Package 16-Lead Plastic Small Outline
- Released Date May 20, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LTC489CSW Details
-
Manufacturer Part Number:
LTC489CSW
-
Part Life Cycle Code:
Obsolete
-
Package Description:
0.300 INCH, PLASTIC, SO-16
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
0
-
Input Characteristics:
DIFFERENTIAL
-
Interface IC Type:
LINE RECEIVER
-
Interface Standard:
EIA-449; EIA-530; V.35
-
JESD-30 Code:
R-PDSO-G16
LTC489CSW Frequently Asked Questions (FAQs)
-
The recommended layout and placement for the LTC489CSW involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the power supply bypass capacitors. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN115 for more details.
-
To optimize the performance of the LTC489CSW, ensure that the input and output capacitors are properly selected, the PCB layout is optimized, and the device is operated within its recommended operating conditions. Additionally, consider using a low-ESR output capacitor, and ensure that the input voltage is within the recommended range. Consult with Analog Devices' application engineers for customized guidance.
-
The LTC489CSW has a maximum junction temperature of 150°C. Ensure that the device is operated within its recommended operating conditions, and that the PCB is designed to dissipate heat effectively. Use thermal vias and a heat sink if necessary. Refer to the datasheet for thermal resistance and power dissipation calculations.
-
The LTC489CSW is a commercial-grade device, but it can be used in high-reliability or high-temperature applications with proper derating and qualification. Consult with Analog Devices' application engineers to discuss specific requirements and obtain guidance on device selection, testing, and qualification.
-
To troubleshoot issues with the LTC489CSW, start by verifying the input and output voltages, and checking for proper PCB layout and component selection. Use an oscilloscope to check for oscillations or noise, and consult the datasheet and application notes for guidance on specific issues. Contact Analog Devices' technical support for further assistance.
Trust Checks
Community Provided
System Verified
Community Approved
LTC489CSW Overview

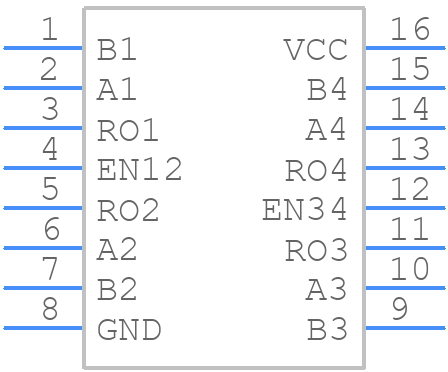

Use the download button to access the LTC489CSW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC48,
or try a keyword search, such as Line Driver or Receivers
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
