LTC5532EDC#TRMPBF - Analog Devices

Description: RF Detector Prec 300MHz to 7GHz RF Detector w/ Gain

Download LTC5532EDC#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

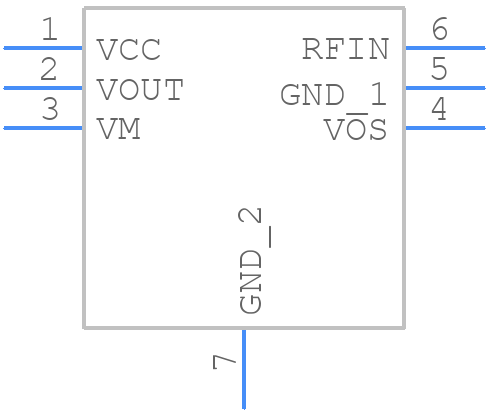

Symbol
LTC5532EDC#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC5532EDC#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DC Package 6-Lead Plastic DFN (2mm × 2mm)
click to zoom
3D Models
LTC5532EDC#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - DC Package 6-Lead Plastic DFN (2mm × 2mm)
click to zoom

LTC5532EDC#TRMPBF Details

  • Manufacturer Part Number:

    LTC5532EDC#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    2 X 2 MM, PLASTIC, M0-229WCCD-2, DFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    05-08-1703

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-609 Code:

    e3

  • Terminal Finish:

    Matte Tin (Sn) - annealed

LTC5532EDC#TRMPBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling.
  • Ensure the VCC pin is connected to a stable voltage source, and the VEE pin is connected to a quiet ground. Also, decouple the VCC pin with a 0.1uF capacitor to reduce noise.
  • The maximum input power is limited by the package thermal resistance and the maximum junction temperature. Typically, the maximum input power is around 1W, but this can vary depending on the specific application and thermal design.
  • Check the PCB layout for noise coupling and ensure proper decoupling. Verify the input and output impedance matching, and check for any signs of overheating. Also, ensure the device is properly biased and the power supply is stable.
  • The LTC5532EDC is rated for operation up to 125°C, but the maximum junction temperature should not exceed 150°C. Ensure proper thermal design and heat sinking to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC5532EDC#TRMPBF Overview

Use the download button to access the LTC5532EDC#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC55, or try a keyword search, such as RF/Microwave Detectors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
