LTC5562IUC#TRMPBF footprint, schematic symbol and 3D model by Analog Devices

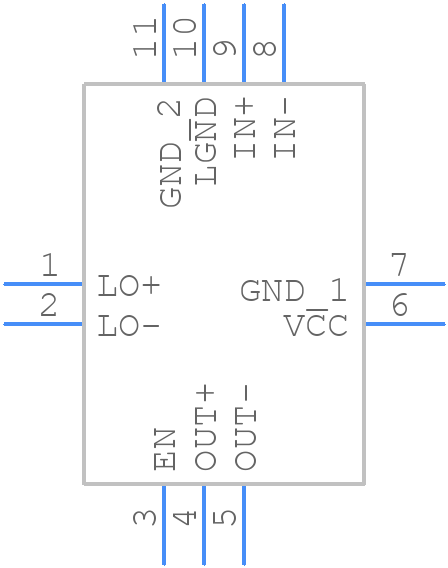

Symbol

click to zoom

PCB Footprints

LTC5562IUC#TRMPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LTC5562IUC#TRMPBF-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LTC5562IUC#TRMPBF
Part Number LTC5562IUC#TRMPBF
Manufacturer Analog Devices
Pin Count 11
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - LTC5562IUC#TRMPBF-1
Released Date Feb 13, 2019
Last Modified Date Jun 22, 2023 2:40 AM UTC
Pinout / Pin List Click Here (Member Only)

LTC5562IUC#TRMPBF Details

Manufacturer Part Number:
LTC5562IUC#TRMPBF
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
QFN-10
Pin Count:
10
Manufacturer Package Code:
05-08-1534
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Input Power-Max (CW):
15 dBm
JESD-609 Code:
e3
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
10
Operating Frequency-Max:
7000 MHz
Operating Frequency-Min:
0.03 MHz
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
LCC10,.08SQ,20
Power Supplies:
3.3 V
RF/Microwave Device Type:
DOUBLE BALANCED
Supply Current-Max:
46 mA
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)

LTC5562IUC#TRMPBF Frequently Asked Questions (FAQs)

A good PCB layout for the LTC5562 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the power supply. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure proper biasing, make sure to connect the VCC pin to a stable voltage source, and the VEE pin to a stable voltage sink. The recommended bias voltage is between 2.7V and 5.5V. Also, ensure that the input signals are within the recommended common-mode range.
The maximum power dissipation of the LTC5562 is 1.4W. However, this can be affected by the operating frequency, supply voltage, and ambient temperature. It's essential to ensure proper thermal management to prevent overheating.
Yes, the LTC5562 can be used with a single-ended input signal. However, this will result in a loss of common-mode rejection ratio (CMRR) and may affect the overall performance. It's recommended to use a differential input signal for optimal performance.
To troubleshoot issues with the LTC5562, start by verifying the power supply voltage and ensuring that it's within the recommended range. Check the input signals for proper amplitude and frequency. Use an oscilloscope to verify the output signal and check for any signs of distortion or oscillation.

Trust Checks

Community Provided

System Verified

Community Approved

LTC5562IUC#TRMPBF Overview

Use the download button to access the LTC5562IUC#TRMPBF schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like LTC55, or try a keyword search, such as RF/Microwave Mixers
