LTC5576IUF#PBF - Analog Devices

Description: IC MIXER DOWN CONVERTER 16QFN

Download LTC5576IUF#PBF Model

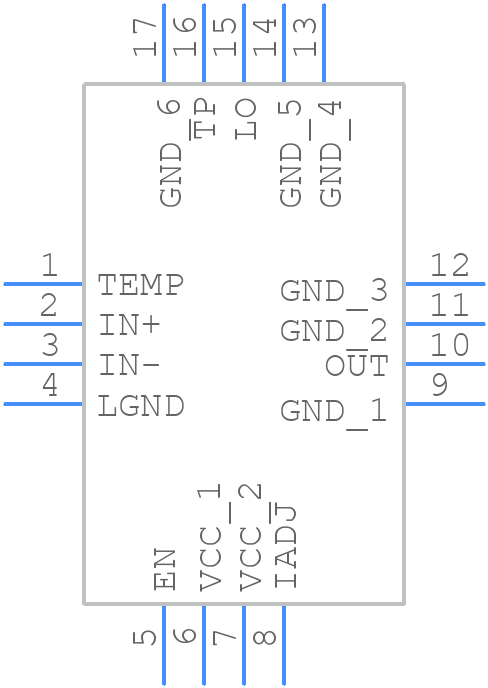

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC5576IUF#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UF Package 16-Lead Plastic QFN (4mm × 4mm) (Reference LTC DWG # 05-08-1692)
click to zoom
3D Models
LTC5576IUF#PBF - Analog Devices  - 3D model - Quad Flat No-Lead - UF Package 16-Lead Plastic QFN (4mm × 4mm) (Reference LTC DWG # 05-08-1692)
click to zoom

LTC5576IUF#PBF Details

  • Manufacturer Part Number:

    LTC5576IUF#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1692

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    15 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    8000 MHz

  • Operating Frequency-Min:

    3000 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Power Supplies:

    3.3/5 V

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Supply Current-Max:

    112 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)
