LTC5577IUF#PBF - Analog Devices

Description: RF Mixer IC CATV Down Converter 300MHz ~ 6GHz 16-QFN (4x4)

Download LTC5577IUF#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

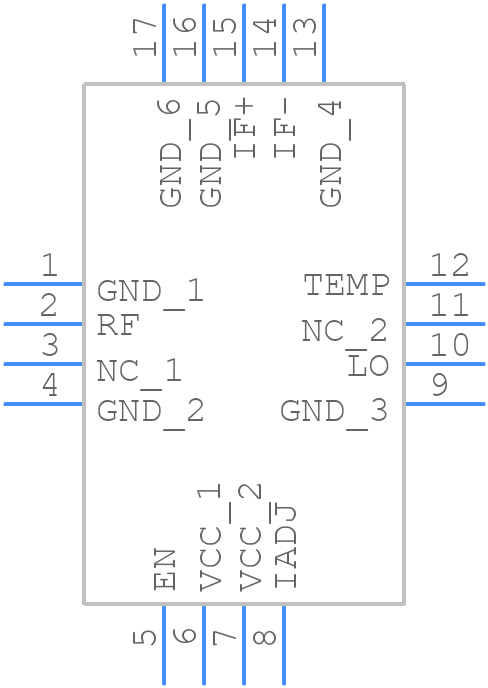

LTC5577IUF#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC5577IUF#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UF Package 16-Lead Plastic QFN (4mm × 4mm)
click to zoom
3D Models
LTC5577IUF#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UF Package 16-Lead Plastic QFN (4mm × 4mm)
click to zoom

LTC5577IUF#PBF Details

  • Manufacturer Part Number:

    LTC5577IUF#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1692

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • IF Frequency-Max:

    1500 MHz

  • IF Frequency-Min:

    1 MHz

  • Input Power-Min (CW):

    18 dBm

  • JESD-609 Code:

    e3

  • LO Tunable:

    YES

  • Mounting Feature:

    SURFACE MOUNT

  • Noise Figure-Max:

    14 dB

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Power Supplies:

    3.3 V

  • RF Input Frequency-Max:

    6000 MHz

  • RF Input Frequency-Min:

    300 MHz

  • RF/Microwave Device Type:

    DOWN CONVERTER

  • Supply Current-Max:

    217 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

LTC5577IUF#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling.
  • Use a low-ESR capacitor for the input and output capacitors, and keep the capacitor leads short. Also, use a low-inductance path for the input and output connections.
  • The LTC5577 is rated for operation from -40°C to 125°C, but the maximum operating temperature range may vary depending on the specific application and thermal design.
  • Yes, the LTC5577 can be used in switching regulator applications, but it's essential to ensure that the switching frequency is within the device's bandwidth and that the output filter is properly designed to minimize ringing and oscillations.
  • Check the PCB layout, component selection, and output filter design. Ensure that the input and output capacitors are properly selected and that the output filter is properly damped. Also, verify that the device is operated within its recommended operating conditions.
