LTC5582IDD#TRPBF - Analog Devices

Description: RF Detector 40MHz to 10000MHz 2dBm Automotive 10-Pin DFN EP T/R

Download LTC5582IDD#TRPBF Model

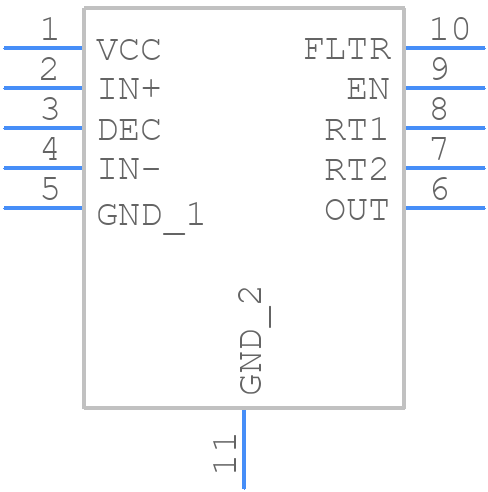

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC5582IDD#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package1
click to zoom
3D Models
LTC5582IDD#TRPBF - Analog Devices  - 3D model - Small Outline No-lead - DD Package1
click to zoom

LTC5582IDD#TRPBF Details

  • Manufacturer Part Number:

    LTC5582IDD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    24 dBm

  • Input Power-Min (CW):

    18 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Frequency-Max:

    10000 MHz

  • Operating Frequency-Min:

    40 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    POSITIVE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Power Supplies:

    3.3 V

  • RF/Microwave Device Type:

    LINEAR DETECTOR

  • Supply Current-Max:

    52 mA

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

LTC5582IDD#TRPBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize coupling. Use a common mode choke or a ferrite bead to filter the input power.
  • Ensure the VCC pin is connected to a stable voltage source between 2.7V and 5.5V. The VBIAS pin should be connected to a voltage source between 2.7V and 5.5V, or tied to VCC through a resistor divider to set the desired bias point.
  • The maximum input power that the LTC5582 can handle is 10dBm (10mW). Exceeding this limit may cause the device to saturate or be damaged.
  • Use the internal matching network to optimize the device for a specific frequency band. The internal matching network can be tuned by adjusting the values of the external components R1, R2, and C1.
  • The recommended operating temperature range for the LTC5582 is -40°C to 85°C. Operating the device outside this range may affect its performance and reliability.
