LTC5586IUH#TRPBF - Analog Devices

Description: 6GHz High Linearity I/Q Demodulator with Wideband IF Amplifier

Download LTC5586IUH#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

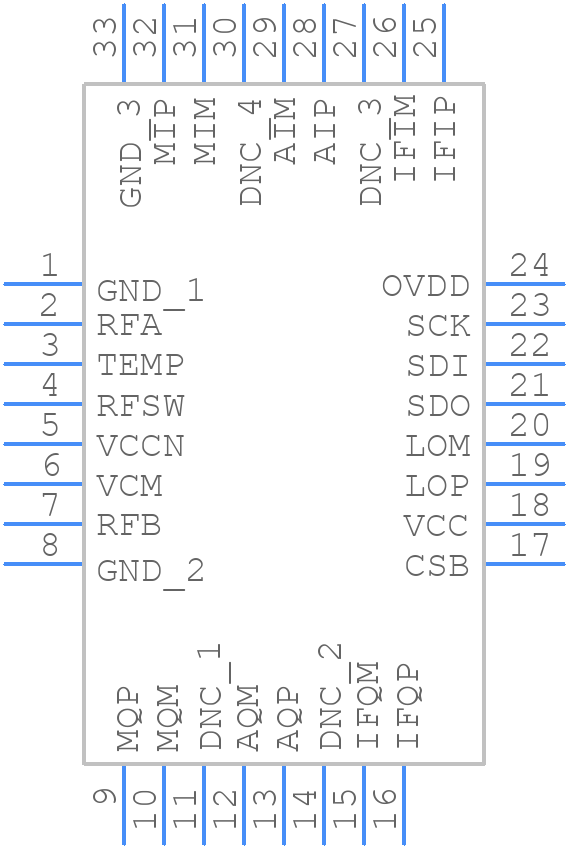

LTC5586IUH#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC5586IUH#TRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UH Package 32-Lead Plastic QFN (5mm × 5mm) (ReferenceLTC DWG # 05-08-1693)
click to zoom
3D Models
LTC5586IUH#TRPBF - Analog Devices - 3D model - Quad Flat No-Lead - UH Package 32-Lead Plastic QFN (5mm × 5mm) (ReferenceLTC DWG # 05-08-1693)
click to zoom

LTC5586IUH#TRPBF Details

  • Manufacturer Part Number:

    LTC5586IUH#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1693

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

LTC5586IUH#TRPBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize coupling.
  • Ensure the VCC pin is biased to a stable voltage between 3.3V and 5.5V, and the VEE pin is connected to a quiet analog ground. Also, decouple the VCC pin with a 0.1uF capacitor to analog ground.
  • The maximum input power is limited by the device's thermal characteristics. Ensure the device is properly heat-sunk and the input power is limited to 10dBm or less to prevent overheating.
  • Use the device's internal matching network and adjust the external components (L1, L2, C1, and C2) to optimize the device for the desired frequency band. Refer to the datasheet's application circuit for guidance.
  • Use a TVS (Transient Voltage Suppressor) diode or a zener diode with a voltage rating greater than the maximum input voltage to protect the device from ESD events.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC5586IUH#TRPBF Overview

Use the download button to access the LTC5586IUH#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC55, or try a keyword search, such as Other Telecom ICs
