LTC5587IDD#PBF - Analog Devices

Description: RF Detector 6GHz RMS Power Detector with 12-Bit Serial Output ADC

Download LTC5587IDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

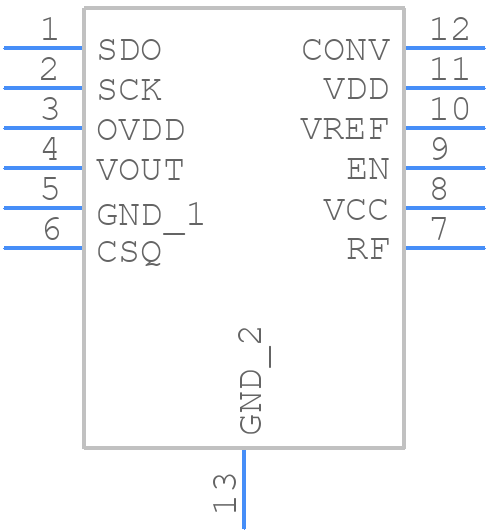

Symbol
LTC5587IDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC5587IDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - dfn12-ren1
click to zoom
3D Models
LTC5587IDD#PBF - Analog Devices - 3D model - Small Outline No-lead - dfn12-ren1
click to zoom

LTC5587IDD#PBF Details

  • Manufacturer Part Number:

    LTC5587IDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1725

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC5587IDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC5587IDD#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the antenna. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog ground and another for the digital ground.
  • To optimize the performance of the LTC5587IDD#PBF in a high-temperature environment, ensure good thermal management by providing adequate heat sinking and airflow. Also, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
  • The recommended power-up sequence for the LTC5587IDD#PBF is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the enable signal (EN). This sequence helps prevent damage or malfunction.
  • To troubleshoot issues with the LTC5587IDD#PBF, start by verifying the power supply voltages and ensuring that the device is properly configured. Then, use a logic analyzer or oscilloscope to monitor the device's output and input signals. Check the datasheet for specific troubleshooting guidelines and consult with Analog Devices' support resources if needed.
  • To ensure EMC when using the LTC5587IDD#PBF, follow proper PCB layout and design guidelines, use shielding and filtering as needed, and ensure that the device is properly grounded. Additionally, consider using a metal enclosure and following relevant EMC standards and regulations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC5587IDD#PBF Overview

Use the download button to access the LTC5587IDD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC55, or try a keyword search, such as Other Telecom ICs
