LTC5587IDD#TRPBF - Analog Devices

Description: RF Detector 6GHz RMS Power Detector with 12-Bit Serial Output ADC

Download LTC5587IDD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

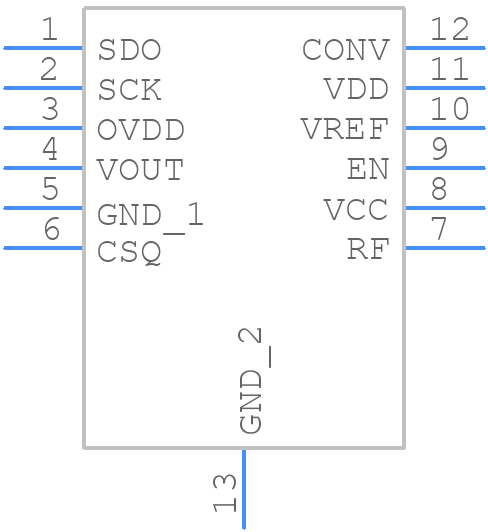

LTC5587IDD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC5587IDD#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 12-Lead Plastic DFN (3mm × 3m-m)_--
click to zoom
3D Models
LTC5587IDD#TRPBF - Analog Devices - 3D model - Small Outline No-lead - 12-Lead Plastic DFN (3mm × 3m-m)_--
click to zoom

LTC5587IDD#TRPBF Details

  • Manufacturer Part Number:

    LTC5587IDD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1725

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC5587IDD#TRPBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize coupling. Use a common mode choke or a ferrite bead to filter the input power.
  • Ensure the VCC pin is connected to a stable voltage source between 2.7V and 5.5V. The VBIAS pin should be connected to a voltage source between 2.7V and 5.5V, or tied to VCC through a resistor divider to set the desired bias point.
  • The maximum input power is limited by the package thermal resistance and the maximum junction temperature. For the DFN package, the maximum input power is approximately 250mW. However, this can be increased with proper heat sinking and thermal management.
  • Use the internal matching network and adjust the external components (L1, C1, and R1) to optimize the performance for the desired frequency band. The datasheet provides a starting point for the component values, but simulation and experimentation may be necessary for optimal performance.
  • Use a TVS (Transient Voltage Suppressor) diode or a zener diode with a voltage rating above the maximum input voltage to protect the device from ESD events. The datasheet recommends a 5.1V zener diode for ESD protection.
