LTC5589IUF#PBF - Analog Devices

Description: Modulator / Demodulator 700MHz - 6GHz Low-Power I/Q Modulator

Download LTC5589IUF#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

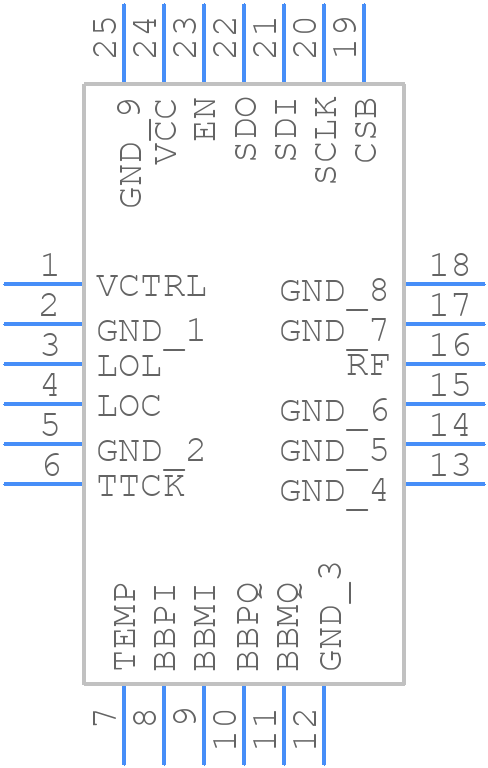

Symbol
LTC5589IUF#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC5589IUF#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-3 (LFCSP_VQ)_11
click to zoom
3D Models
LTC5589IUF#PBF - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-3 (LFCSP_VQ)_11
click to zoom

LTC5589IUF#PBF Details

  • Manufacturer Part Number:

    LTC5589IUF#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1697

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    R-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

LTC5589IUF#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize coupling. Use a common mode choke or a ferrite bead to filter the input power.
  • Ensure the VCC pin is connected to a stable voltage source between 3.3V and 5V. The VBIAS pin should be connected to a voltage source between 1.8V and 3.3V. The VREF pin should be connected to a stable voltage reference between 1.2V and 3.3V.
  • The maximum input power that the LTC5589 can handle is 10dBm (10mW). Exceeding this limit may cause the device to saturate or be damaged.
  • Calibration involves adjusting the VREF pin to set the desired output voltage range. A calibration procedure is typically performed at the factory, but it can be re-calibrated in the field using a voltage source and a multimeter.
  • The typical settling time of the LTC5589 is 10us to 100us, depending on the input signal frequency and amplitude. This is the time it takes for the output voltage to settle within 1% of its final value after a step change in the input signal.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC5589IUF#PBF Overview

Use the download button to access the LTC5589IUF#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC55, or try a keyword search, such as Other Telecom ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
