LTC5590IUH#PBF - Analog Devices

Description: Dual 600MHz to 1.7GHz High Dynamic Range Downconverting Mixer

Download LTC5590IUH#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

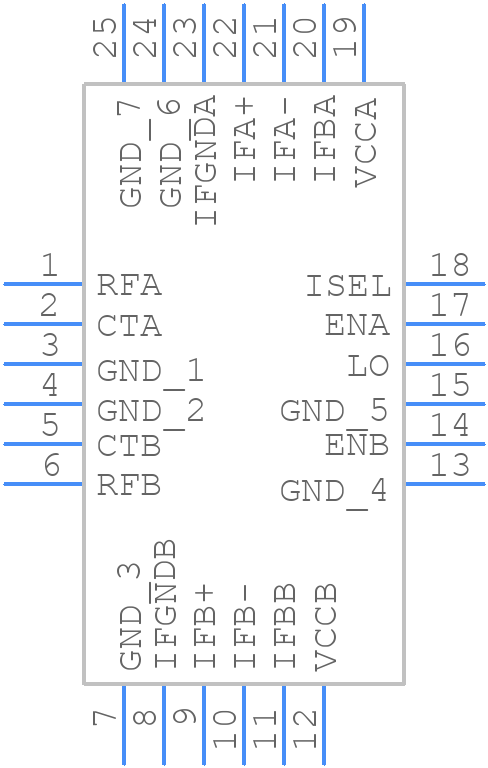

LTC5590IUH#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC5590IUH#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UH Package 24-Lead Plastic QFN (5mm × 5mm)
click to zoom
3D Models
LTC5590IUH#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UH Package 24-Lead Plastic QFN (5mm × 5mm)
click to zoom

LTC5590IUH#PBF Details

  • Manufacturer Part Number:

    LTC5590IUH#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 5 MM, LEAD FREE, PLASTIC, QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1747

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    RF FRONT END CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LTC5590IUH#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC5590IUH involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN137 for more details.
  • The LTC5590IUH requires a single 3.3V or 5V supply. Ensure that the supply voltage is well-regulated and decoupled with a 0.1uF capacitor. The device also requires a bias voltage (VBIAS) of 2.5V, which can be generated using a voltage divider or a dedicated voltage reference.
  • The maximum input power that the LTC5590IUH can handle is 10dBm (10mW). Exceeding this limit can cause damage to the device. Ensure that the input power is attenuated or limited to prevent damage.
  • The LTC5590IUH can be programmed for different frequency bands using the SPI interface. The device has 32 registers that can be programmed to set the frequency, gain, and other parameters. Refer to the datasheet and the application note AN137 for more details on programming the device.
  • The typical settling time of the LTC5590IUH is 10us. This is the time it takes for the device to settle to its final value after a change in the input frequency or gain.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC5590IUH#PBF Overview

Use the download button to access the LTC5590IUH#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC55, or try a keyword search, such as Cellular Telephone Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
