LTC5597HDC#TRPBF - Analog Devices

Description: 100MHz to 70GHz Linear-in-dB RMS Power Detector with 35dB Dynamic Range

Download LTC5597HDC#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

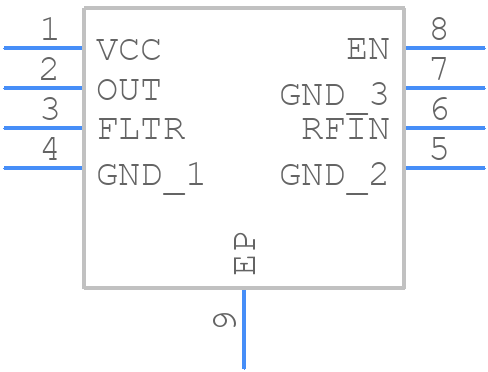

Symbol
LTC5597HDC#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC5597HDC#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DC Package 8-Lead Plastic DFN (2mm × 2mm)
click to zoom
3D Models
LTC5597HDC#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DC Package 8-Lead Plastic DFN (2mm × 2mm)
click to zoom

LTC5597HDC#TRPBF Details

  • Manufacturer Part Number:

    LTC5597HDC#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1957

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-06-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    37.3 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

LTC5597HDC#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC5597HDC#TRPBF involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN137 for more details.
  • The LTC5597HDC#TRPBF requires a single 3.3V or 5V power supply. Ensure that the power supply is clean and well-regulated. The device has an internal power-on reset circuit, so no external reset circuit is required. However, it's recommended to add a 10kΩ pull-up resistor on the EN pin to ensure proper enablement.
  • The LTC5597HDC#TRPBF can support data rates up to 6.4Gbps. However, the actual data rate achievable depends on the specific application, PCB layout, and signal integrity. It's recommended to perform signal integrity analysis and simulation to ensure reliable data transmission.
  • To troubleshoot issues with the LTC5597HDC#TRPBF, start by verifying the power supply and clock input. Check the input signal integrity and ensure that the device is properly configured. Use an oscilloscope to monitor the output signal and check for any signs of distortion or noise. Refer to the datasheet and application notes for more troubleshooting tips.
  • The LTC5597HDC#TRPBF has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. Use a thermal pad or heat sink to dissipate heat, especially in high-power or high-temperature applications. Refer to the datasheet for thermal management guidelines.
