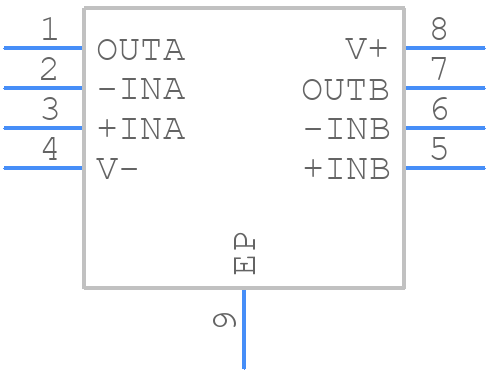

LTC6244HVHDD - Analog Devices

LTC6244HVHDD Details

• Manufacturer Part Number:

  LTC6244HVHDD

• Part Life Cycle Code:

  Active Unconfirmed

• Package Description:

  3 X 3 MM, PLASTIC, MO-229WEED-1, DFN-8

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  2

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.002 µA

• Common-mode Reject Ratio-Min:

  80 dB

• Common-mode Reject Ratio-Nom:

  105 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  1050 µV

• JESD-30 Code:

  S-PDSO-N8

• JESD-609 Code:

  e0

• Length:

  3 mm

• Low-Bias:

  YES

• Low-Offset:

  YES

• Micropower:

  NO

• Neg Supply Voltage Limit-Max:

  -6 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Number of Functions:

  2

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC8,.11,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Power:

  YES

• Programmable Power:

  NO

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.8 mm

• Slew Rate-Min:

  18 V/us

• Slew Rate-Nom:

  40 V/us

• Supply Current-Max:

  18.6 mA

• Supply Voltage Limit-Max:

  6 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Unity Gain BW-Nom:

  50000

• Voltage Gain-Min:

  170000

• Wideband:

  YES

• Width:

  3 mm
