LTC6253CDC#TRPBF - Analog Devices

Description: 720MHz, 3.5mA Dual Power Efficient Rail-to-Rail I/O Op Amps 0°C to 70°C,2.5 V

Download LTC6253CDC#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

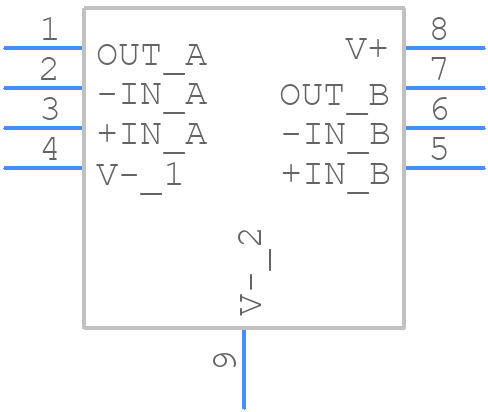

LTC6253CDC#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6253CDC#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DC8 Package 8-Lead Plastic DFN (2mm × 2mm)
click to zoom
3D Models
LTC6253CDC#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DC8 Package 8-Lead Plastic DFN (2mm × 2mm)
click to zoom

LTC6253CDC#TRPBF Details

  • Manufacturer Part Number:

    LTC6253CDC#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    2 X 2 MM, LEAD FREE, PLASTIC, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1719

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.7 µA

  • Bias Current-Max (IIB) @25C:

    2.5 µA

  • Common-mode Reject Ratio-Min:

    77 dB

  • Common-mode Reject Ratio-Nom:

    105 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1400 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,18

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    170 V/us

  • Supply Current-Max:

    5.5 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    630000

  • Voltage Gain-Min:

    1800

  • Wideband:

    YES

  • Width:

    2 mm
