LTC6253HMS-7#PBF - Analog Devices

Description: Op Amp Dual High Speed Amplifier R-R I/O 5.25V 10-Pin MSOP Tube

Download LTC6253HMS-7#PBF Model

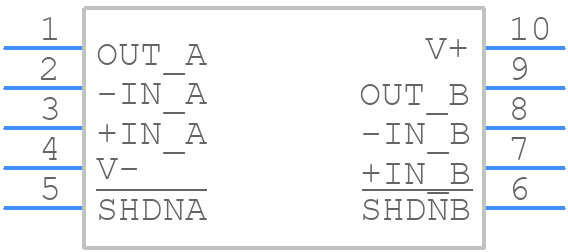

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC6253HMS-7#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 10-Lead Plastic MSOP_2022
click to zoom
3D Models
LTC6253HMS-7#PBF - Analog Devices  - 3D model - Small Outline Packages - MS Package 10-Lead Plastic MSOP_2022
click to zoom

LTC6253HMS-7#PBF Details

  • Manufacturer Part Number:

    LTC6253HMS-7#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    5 µA

  • Bandwidth (3dB)-Nom:

    130 MHz

  • Bias Current-Max (IIB) @25C:

    0.6 µA

  • Common-mode Reject Ratio-Min:

    82 dB

  • Common-mode Reject Ratio-Nom:

    105 dB

  • Frequency Compensation:

    NO

  • Input Offset Current-Max (IIO):

    0.6 µA

  • Input Offset Voltage-Max:

    3400 µV

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Min:

    250 V/us

  • Slew Rate-Nom:

    500 V/us

  • Supply Current-Max:

    11 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    1300000

  • Voltage Gain-Min:

    1800

  • Wideband:

    YES

  • Width:

    3 mm
