LTC6253IMS-7#PBF - Analog Devices

Description: High Speed Operational Amplifiers 3GHz, 3.5mA Av>=7 Rail-to-Rail I/O Op Amps

Download LTC6253IMS-7#PBF Model

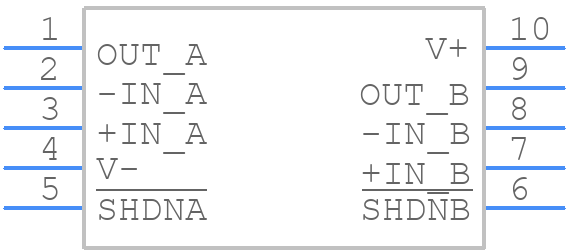

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC6253IMS-7#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 10-Lead Plastic MSOP_2022
click to zoom
3D Models
LTC6253IMS-7#PBF - Analog Devices  - 3D model - Small Outline Packages - MS Package 10-Lead Plastic MSOP_2022
click to zoom

LTC6253IMS-7#PBF Details

  • Manufacturer Part Number:

    LTC6253IMS-7#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    5 µA

  • Bandwidth (3dB)-Nom:

    130 MHz

  • Bias Current-Max (IIB) @25C:

    0.6 µA

  • Common-mode Reject Ratio-Min:

    82 dB

  • Common-mode Reject Ratio-Nom:

    105 dB

  • Frequency Compensation:

    NO

  • Input Offset Current-Max (IIO):

    0.6 µA

  • Input Offset Voltage-Max:

    3400 µV

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Min:

    250 V/us

  • Slew Rate-Nom:

    500 V/us

  • Supply Current-Max:

    11 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    1300000

  • Voltage Gain-Min:

    1800

  • Wideband:

    YES

  • Width:

    3 mm

LTC6253IMS-7#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6253 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer board with a dedicated analog ground plane is recommended. Refer to the Analog Devices application note AN137 for more details.
  • To ensure stability, make sure to follow the recommended compensation network, choose the correct output capacitor, and avoid capacitive loads. Also, ensure that the input and output voltages are within the recommended operating range, and the device is operated within the specified temperature range.
  • The maximum power dissipation of the LTC6253 is dependent on the package type and the ambient temperature. For the MSOP-8 package, the maximum power dissipation is 450mW at 25°C ambient temperature. Refer to the datasheet for more information on power dissipation and thermal characteristics.
  • Yes, the LTC6253 can be used as a unity-gain buffer. However, it's essential to ensure that the input and output impedances are matched, and the output is not loaded with a capacitive load. Also, note that the device has a limited output current capability, so it may not be suitable for driving heavy loads.
  • The output voltage noise of the LTC6253 can be calculated using the equation: Vn_out = √(Vn_in^2 + (I_n*R_out)^2), where Vn_in is the input voltage noise, I_n is the input current noise, and R_out is the output resistance. Refer to the datasheet for the noise specifications and calculation details.
