LTC6254IMS#PBF - Analog Devices

Description: General Purpose Amplifier 4 Circuit Rail-to-Rail 16-MSOP

Download LTC6254IMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

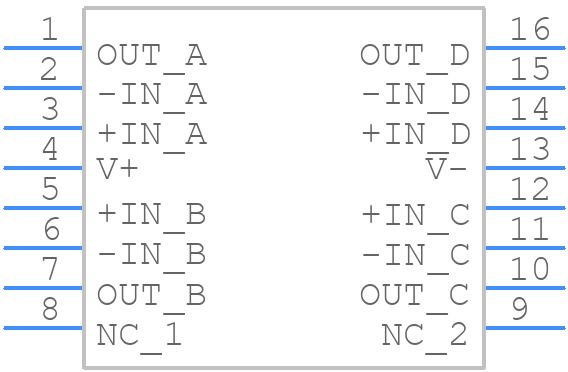

LTC6254IMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6254IMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 16-Lead Plastic MSOP
click to zoom
3D Models
LTC6254IMS#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 16-Lead Plastic MSOP
click to zoom

LTC6254IMS#PBF Details

  • Manufacturer Part Number:

    LTC6254IMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.7 µA

  • Bias Current-Max (IIB) @25C:

    2.5 µA

  • Common-mode Reject Ratio-Min:

    77 dB

  • Common-mode Reject Ratio-Nom:

    105 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1400 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    170 V/us

  • Supply Current-Max:

    22 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    630000

  • Voltage Gain-Min:

    1800

  • Wideband:

    YES

  • Width:

    3 mm

LTC6254IMS#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6254IMS#PBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the bypass capacitors. A 4-layer PCB with a dedicated analog ground plane is recommended. Refer to the Analog Devices application note AN137 for more details.
  • The input capacitor (CIN) should be a low-ESR ceramic capacitor with a value between 1uF to 10uF. The output capacitor (COUT) should be a low-ESR ceramic or tantalum capacitor with a value between 1uF to 22uF. The capacitor values and types may vary depending on the specific application and operating conditions. Refer to the datasheet and application notes for more guidance.
  • The LTC6254IMS#PBF has an operating temperature range of -40°C to 125°C. However, the device may not meet all specifications across the entire temperature range. Refer to the datasheet for specific temperature-related specifications and limitations.
  • The LTC6254IMS#PBF is a commercial-grade device, but Analog Devices offers industrial-grade (LTC6254IMS#IPBF) and automotive-grade (LTC6254IMS#QPBF) versions of the device. These versions have additional testing and qualification for high-reliability and automotive applications. Contact Analog Devices for more information.
  • Oscillations or instability issues with the LTC6254IMS#PBF can be caused by poor PCB layout, inadequate bypassing, or incorrect component selection. Check the PCB layout, ensure proper bypassing, and verify that the input and output capacitors meet the recommended specifications. Also, check for any voltage or current limitations being exceeded. Refer to the datasheet and application notes for more troubleshooting guidance.
