LTC6256CDC#TRPBF - Analog Devices

Description: Dual 6.5MHz, 65μA Power Efficient Rail-to-Rail I/O Op Amps 8-Lead (2mm × 2mm × 0.8mm) Plastic DFN

Download LTC6256CDC#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

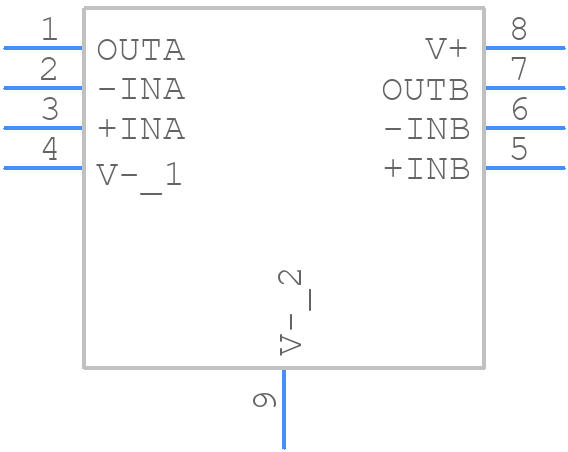

Symbol
LTC6256CDC#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6256CDC#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DC8 Package 8-Lead Plastic DFN (2mm × 2mm) (Reference LTC DWG # 05-08-1719 Rev A)
click to zoom
3D Models
LTC6256CDC#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DC8 Package 8-Lead Plastic DFN (2mm × 2mm) (Reference LTC DWG # 05-08-1719 Rev A)
click to zoom

LTC6256CDC#TRPBF Details

  • Manufacturer Part Number:

    LTC6256CDC#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DFN-9

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1719

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.075 µA

  • Bias Current-Max (IIB) @25C:

    0.02 µA

  • Common-mode Reject Ratio-Min:

    71 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    700 µV

  • JESD-30 Code:

    S-PBCC-N9

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Min:

    0.75 V/us

  • Slew Rate-Nom:

    1.8 V/us

  • Supply Current-Max:

    0.083 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    BOTTOM

  • Unity Gain BW-Nom:

    6500

  • Voltage Gain-Min:

    17000

  • Wideband:

    NO

  • Width:

    2 mm

LTC6256CDC#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6256 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 1uF to 10uF, and the output capacitor should be a low-ESR ceramic or film capacitor with a value between 1uF to 22uF. The capacitor values and types should be chosen based on the specific application requirements, such as noise filtering, stability, and output impedance.
  • The maximum power dissipation of the LTC6256 is dependent on the ambient temperature and the thermal resistance of the package. The datasheet provides a power dissipation curve that shows the maximum power dissipation at different ambient temperatures. As a general rule, the device should be operated at a junction temperature below 125°C to ensure reliability.
  • The LTC6256 is rated for operation from -40°C to 125°C, but the device's performance and reliability may degrade at high temperatures. The datasheet provides temperature-related specifications and graphs that can be used to determine the device's performance at high temperatures. It's recommended to derate the device's power dissipation and ensure proper thermal management to ensure reliable operation.
  • To ensure stability, the LTC6256 requires a minimum output capacitance of 1uF, and the output capacitor should be placed close to the device. Additionally, the input and output traces should be kept short and separate, and the device should be operated within its specified input and output voltage ranges. The datasheet provides a stability analysis and guidelines for ensuring stability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6256CDC#TRPBF Overview

Use the download button to access the LTC6256CDC#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC62, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
