LTC6256IDC#TRMPBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC6256IDC#TRMPBF - Operational Amplifier, 2 Amplifier, 6.5 MHz, 1.8 V/µs, 1.8V to 5.25V, DFN, 8 Pins

Download LTC6256IDC#TRMPBF Model

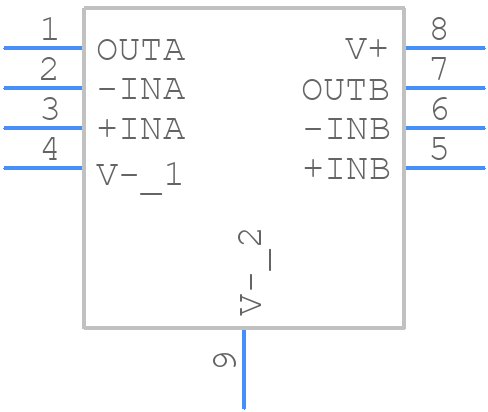

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC6256IDC#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DC8 (DFN)-1
click to zoom
3D Models
LTC6256IDC#TRMPBF - Analog Devices  - 3D model - Small Outline No-lead - DC8 (DFN)-1
click to zoom

LTC6256IDC#TRMPBF Details

  • Manufacturer Part Number:

    LTC6256IDC#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DFN-9

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1719

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.075 µA

  • Bias Current-Max (IIB) @25C:

    0.02 µA

  • Common-mode Reject Ratio-Min:

    71 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    700 µV

  • JESD-30 Code:

    S-PBCC-N9

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Min:

    0.75 V/us

  • Slew Rate-Nom:

    1.8 V/us

  • Supply Current-Max:

    0.083 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    BOTTOM

  • Unity Gain BW-Nom:

    6500

  • Voltage Gain-Min:

    17000

  • Wideband:

    NO

  • Width:

    2 mm

LTC6256IDC#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6256 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability in high-gain configurations, it's essential to follow the recommended compensation network and component values, and to ensure that the device is operated within its specified bandwidth. Additionally, using a low-ESR output capacitor and a high-quality input capacitor can help maintain stability.
  • The maximum power dissipation of the LTC6256 is dependent on the package type and the ambient temperature. The maximum power dissipation can be calculated using the formula: Pd = (Vcc x Icc) + (Vout x Iout). It's essential to ensure that the device is operated within its specified power dissipation limits to prevent overheating.
  • Yes, the LTC6256 can be used as a unity-gain buffer. However, it's essential to ensure that the input and output impedances are matched, and that the device is operated within its specified bandwidth. Additionally, the output capacitor value should be chosen carefully to ensure stability.
  • To protect the LTC6256 from overvoltage and overcurrent conditions, it's recommended to use voltage and current limiting circuits, such as zener diodes and current-limiting resistors. Additionally, using a fuse or a polyfuse can help prevent damage from overcurrent conditions.
