LTC6256IDC#TRPBF - Analog Devices

Description: Dual 6.5MHz, 65μA Power Efficient Rail-to-Rail I/O Op Amps

Download LTC6256IDC#TRPBF Model

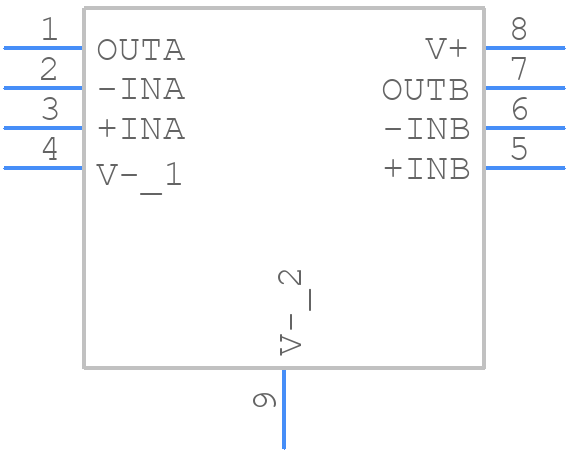

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC6256IDC#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-dfn
click to zoom
3D Models
LTC6256IDC#TRPBF - Analog Devices  - 3D model - Small Outline No-lead - 8-dfn
click to zoom

LTC6256IDC#TRPBF Details

  • Manufacturer Part Number:

    LTC6256IDC#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DFN-9

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1719

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.075 µA

  • Bias Current-Max (IIB) @25C:

    0.02 µA

  • Common-mode Reject Ratio-Min:

    71 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    700 µV

  • JESD-30 Code:

    S-PBCC-N9

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Min:

    0.75 V/us

  • Slew Rate-Nom:

    1.8 V/us

  • Supply Current-Max:

    0.083 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    BOTTOM

  • Unity Gain BW-Nom:

    6500

  • Voltage Gain-Min:

    17000

  • Wideband:

    NO

  • Width:

    2 mm

LTC6256IDC#TRPBF Frequently Asked Questions (FAQs)
