LTC6268HS6-10#TRMPBF - Analog Devices

Description: Operational Amplifiers - Op Amps 4GHz Ultralow bias current FET input Op Amp

Download LTC6268HS6-10#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

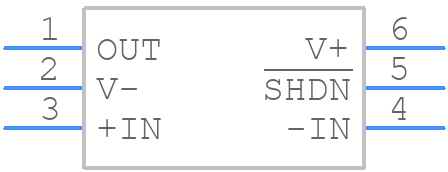

LTC6268HS6-10#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6268HS6-10#TRMPBF - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - 6-Lead Plastic TSOT-23
click to zoom
3D Models
LTC6268HS6-10#TRMPBF - Analog Devices - 3D model - SOT23 (6-Pin) - 6-Lead Plastic TSOT-23
click to zoom

LTC6268HS6-10#TRMPBF Details

  • Manufacturer Part Number:

    LTC6268HS6-10#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, LEAD FREE, MO-193, TSOT-23, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    05-08-1636

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.000004 µA

  • Bias Current-Max (IIB) @25C:

    2e-11 µA

  • Common-mode Reject Ratio-Min:

    50 dB

  • Common-mode Reject Ratio-Nom:

    77 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    4500 µV

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1 mm

  • Slew Rate-Min:

    600 V/us

  • Slew Rate-Nom:

    1500 V/us

  • Supply Current-Max:

    50 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    4000000

  • Voltage Gain-Min:

    40000

  • Wideband:

    YES

  • Width:

    1.625 mm

LTC6268HS6-10#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6268HS6-10 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power supply bypass capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and interference.
  • To ensure stability, it's essential to follow the recommended compensation network and component values, as well as to maintain a stable power supply voltage. Additionally, the device's output should be decoupled with a capacitor, and the input should be filtered to prevent high-frequency noise from affecting the device's operation.
  • The maximum power dissipation of the LTC6268HS6-10 is dependent on the ambient temperature and the thermal resistance of the package. The maximum power dissipation can be calculated using the formula: Pd = (TJ - TA) / θJA, where Pd is the power dissipation, TJ is the junction temperature, TA is the ambient temperature, and θJA is the thermal resistance. The maximum power dissipation should not exceed 1.4W.
  • The LTC6268HS6-10 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may be affected at high temperatures. It's essential to consider the device's thermal characteristics and ensure proper heat sinking and cooling in high-temperature applications.
  • To troubleshoot common issues with the LTC6268HS6-10, start by verifying the power supply voltage and ensuring that it's within the recommended range. Check the input and output connections for proper termination and decoupling. Use an oscilloscope to monitor the device's output and input signals, and check for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and optimizing the device's performance.
