LTC6269IDD#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC6269IDD#PBF - Operational Amplifier, Dual, 2 Amplifier, 350 MHz, 400 V/µs, 3.1V to 5.25V, DFN, 10 Pins

Download LTC6269IDD#PBF Model

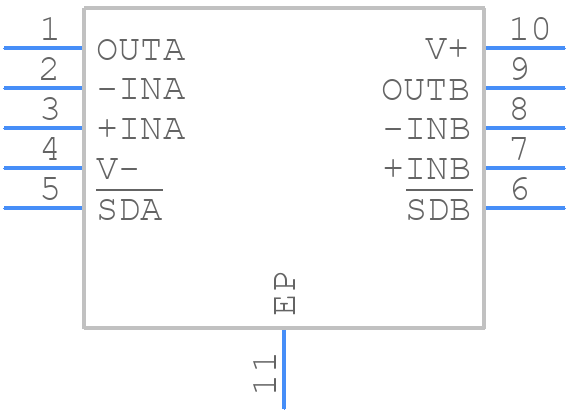

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC6269IDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 10-Lead Plastic DFN (3mm × 3mm)_11
click to zoom
3D Models
LTC6269IDD#PBF - Analog Devices  - 3D model - Small Outline No-lead - DD Package 10-Lead Plastic DFN (3mm × 3mm)_11
click to zoom

LTC6269IDD#PBF Details

  • Manufacturer Part Number:

    LTC6269IDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-2, DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    9e-7 µA

  • Bias Current-Max (IIB) @25C:

    0.002 µA

  • Common-mode Reject Ratio-Min:

    60 dB

  • Common-mode Reject Ratio-Nom:

    77 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    4500 µV

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Power:

    YES

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Min:

    300 V/us

  • Slew Rate-Nom:

    400 V/us

  • Supply Current-Max:

    23 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    420000

  • Voltage Gain-Min:

    2000

  • Wideband:

    YES

  • Width:

    3 mm
