LTC6269IDD#TRPBF - Analog Devices

Description: Operational Amplifiers - Op Amps Dual 500MHz Ultralow bias current FET input Op Amp

Download LTC6269IDD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

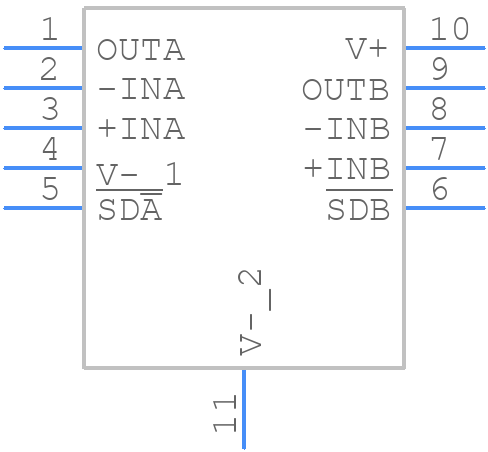

LTC6269IDD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6269IDD#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 10-Lead Plastic DFN (3mm × 3mm)_
click to zoom
3D Models
LTC6269IDD#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 10-Lead Plastic DFN (3mm × 3mm)_
click to zoom

LTC6269IDD#TRPBF Details

  • Manufacturer Part Number:

    LTC6269IDD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-2, DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    9e-7 µA

  • Bias Current-Max (IIB) @25C:

    0.002 µA

  • Common-mode Reject Ratio-Min:

    60 dB

  • Common-mode Reject Ratio-Nom:

    77 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    4500 µV

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Power:

    YES

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Min:

    300 V/us

  • Slew Rate-Nom:

    400 V/us

  • Supply Current-Max:

    23 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    420000

  • Voltage Gain-Min:

    2000

  • Wideband:

    YES

  • Width:

    3 mm

LTC6269IDD#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6269 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • The input and output capacitors should be chosen based on the operating frequency, output voltage, and desired ripple rejection. A general rule of thumb is to use X7R or X5R ceramic capacitors with a voltage rating of at least 2x the output voltage. The datasheet provides a list of recommended capacitors and a capacitor selection guide.
  • The LTC6269 has an operating temperature range of -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the output voltage may droop. It's essential to ensure good thermal design and heat sinking to maintain optimal performance.
  • The LTC6269 is a commercial-grade device, but Analog Devices Inc offers a high-reliability version, the LTC6269H, which is designed for high-reliability and aerospace applications. The LTC6269H has undergone additional testing and screening to ensure its performance in harsh environments.
  • Common issues with the LTC6269 can be troubleshooted by checking the PCB layout, ensuring proper decoupling, and verifying the input and output voltage levels. The datasheet provides a troubleshooting guide, and Analog Devices Inc also offers application notes and technical support to help resolve issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6269IDD#TRPBF Overview

Use the download button to access the LTC6269IDD#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC62, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
