LTC6360CMS8E#PBF - Analog Devices

Description: Op Amp Single GP 5.25V Automotive 8-Pin MSOP EP Tube

Download LTC6360CMS8E#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

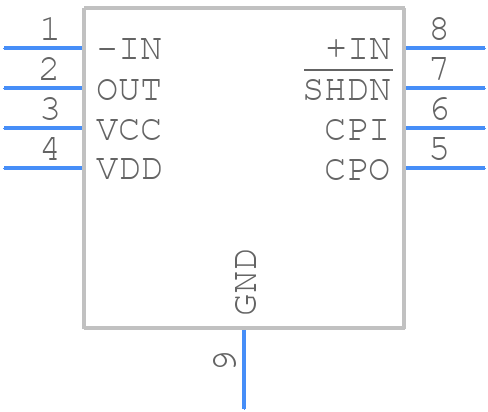

Symbol
LTC6360CMS8E#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6360CMS8E#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP (Reference LTC DWG # 05-08-1662)-ren1
click to zoom
3D Models
LTC6360CMS8E#PBF - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP (Reference LTC DWG # 05-08-1662)-ren1
click to zoom

LTC6360CMS8E#PBF Details

  • Manufacturer Part Number:

    LTC6360CMS8E#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Bandwidth (3dB)-Nom:

    250 MHz

  • Common-mode Reject Ratio-Min:

    78 dB

  • Common-mode Reject Ratio-Nom:

    111 dB

  • Frequency Compensation:

    NO

  • Input Offset Current-Max (IIO):

    1 µA

  • Input Offset Voltage-Max:

    700 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    135 V/us

  • Supply Current-Max:

    9 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1000000

  • Voltage Gain-Min:

    235000

  • Wideband:

    NO

  • Width:

    3 mm

LTC6360CMS8E#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6360 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the input and output capacitors. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The choice of input and output capacitors for the LTC6360 depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. For the input capacitor, a 10uF to 22uF ceramic capacitor is suitable, while for the output capacitor, a 10uF to 47uF ceramic or film capacitor can be used. The datasheet provides more detailed guidance on capacitor selection.
  • The LTC6360 has an operating temperature range of -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, and the maximum junction temperature should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to maintain reliable operation.
  • The LTC6360's gain and bandwidth can be configured using external resistors and capacitors. The datasheet provides a detailed description of the gain and bandwidth settings, as well as a calculator tool to help with component selection. Additionally, Analog Devices provides a Spice model and simulation tools to aid in the design process.
  • The typical power consumption of the LTC6360 depends on the specific application and operating conditions. However, the device typically consumes around 10mA to 20mA of quiescent current, and the total power consumption can range from 50mW to 200mW, depending on the input and output voltage ranges.
