LTC6363HRD#PBF - Analog Devices

Description: DIFF-AMP, 500MHZ, -40 TO 125DEG C, LFCSP;

Download LTC6363HRD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

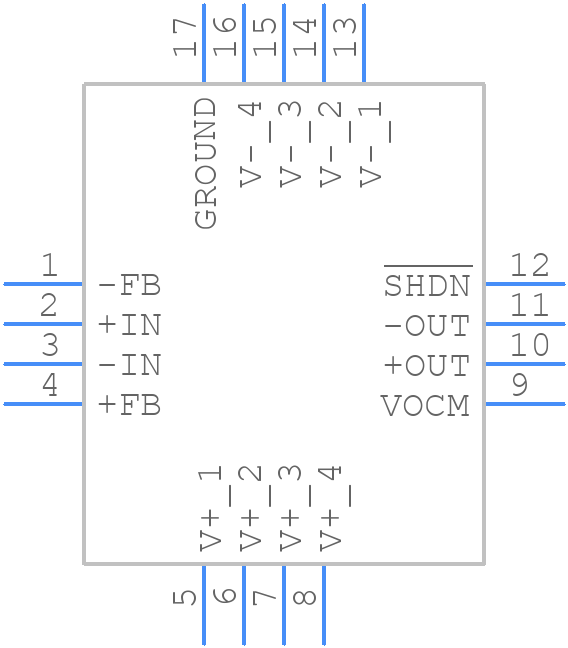

LTC6363HRD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6363HRD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RD Package 16-Lead Plastic LFCSP (3mm × 3mm)_2026JJ-1.16
click to zoom
3D Models
LTC6363HRD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - RD Package 16-Lead Plastic LFCSP (3mm × 3mm)_2026JJ-1.16
click to zoom

LTC6363HRD#PBF Details

  • Manufacturer Part Number:

    LTC6363HRD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1648

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2019-02-08

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.1 µA

  • Bandwidth (3dB)-Nom:

    35 MHz

  • Common-mode Reject Ratio-Min:

    90 dB

  • Common-mode Reject Ratio-Nom:

    120 dB

  • Frequency Compensation:

    NO

  • Input Offset Current-Max (IIO):

    0.075 µA

  • Input Offset Voltage-Max:

    200 µV

  • JESD-30 Code:

    S-PQCC-N16

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TUBE

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    75 V/us

  • Supply Current-Max:

    2.2 mA

  • Supply Voltage Limit-Max:

    12 V

  • Supply Voltage-Nom (Vsup):

    10 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Unity Gain BW-Nom:

    500000

  • Wideband:

    YES

  • Width:

    3 mm

LTC6363HRD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6363HRD involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the input and output capacitors. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • The input and output capacitors should be chosen based on the operating frequency, input voltage, and output current requirements. A low ESR capacitor with a high ripple current rating is recommended for the input capacitor. For the output capacitor, a low ESR capacitor with a high capacitance value is recommended. The datasheet provides guidelines for selecting the right capacitors.
  • The LTC6363HRD has an operating temperature range of -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the output voltage may droop. It's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
  • To ensure stability, the LTC6363HRD requires a minimum output capacitance of 10uF. Additionally, the output capacitor's ESR should be less than 1 ohm. The device's stability can also be affected by the input voltage, output current, and PCB layout. Following the recommended PCB layout and component selection guidelines in the datasheet can help ensure stability.
  • The LTC6363HRD is a commercial-grade device, but it can be used in high-reliability or aerospace applications with proper qualification and testing. Analog Devices provides a range of high-reliability and aerospace-grade devices, including the LTC6363HRA, which is a variant of the LTC6363HRD with enhanced reliability and performance.
