LTC6363IDCB#TRMPBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC6363IDCB#TRMPBF - Differential Amplifier, 1 Amplifiers, 25 µV, 500 MHz, -40 °C, 85 °C

Download LTC6363IDCB#TRMPBF Model

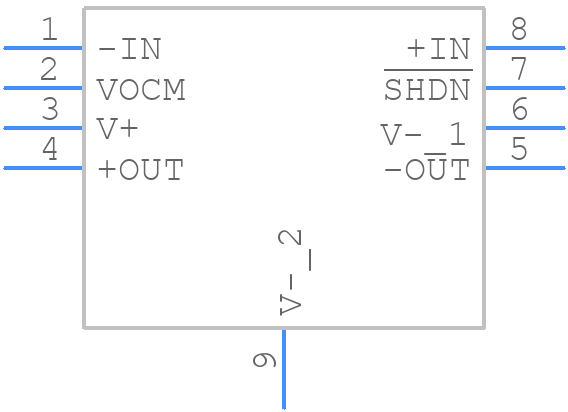

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC6363IDCB#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DC Package 8-Lead Plastic DFN (2mm × 3mm) (Reference LTC DWG # 05-08-1718 Rev A)
click to zoom
3D Models
LTC6363IDCB#TRMPBF - Analog Devices  - 3D model - Small Outline No-lead - DC Package 8-Lead Plastic DFN (2mm × 3mm) (Reference LTC DWG # 05-08-1718 Rev A)
click to zoom

LTC6363IDCB#TRMPBF Details

  • Manufacturer Part Number:

    LTC6363IDCB#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1718

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2018-01-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.1 µA

  • Bandwidth (3dB)-Nom:

    35 MHz

  • Common-mode Reject Ratio-Min:

    90 dB

  • Common-mode Reject Ratio-Nom:

    120 dB

  • Frequency Compensation:

    NO

  • Input Offset Current-Max (IIO):

    0.075 µA

  • Input Offset Voltage-Max:

    200 µV

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,18

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    75 V/us

  • Supply Current-Max:

    2.2 mA

  • Supply Voltage Limit-Max:

    12 V

  • Supply Voltage-Nom (Vsup):

    10 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    500000

  • Wideband:

    YES

  • Width:

    2 mm

LTC6363IDCB#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6363 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device's gain and phase margins can be adjusted using the compensation pins.
  • The maximum power dissipation of the LTC6363 is dependent on the package type and the ambient temperature. For the IDCB package, the maximum power dissipation is approximately 1.4W at 25°C ambient temperature.
  • The LTC6363 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's power dissipation and ensure proper thermal management in high-temperature applications.
  • To troubleshoot oscillations or instability issues, check the PCB layout for any signs of resonance or coupling between the input and output traces. Ensure that the input and output capacitors are of high quality and have low ESR. Also, check the device's gain and phase margins and adjust the compensation pins as needed.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6363IDCB#TRMPBF Overview

Use the download button to access the LTC6363IDCB#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC63, or try a keyword search, such as Operational Amplifiers
