LTC6373HDFM#TRPBF - Analog Devices

Description: Pin-Programmable Gains: ► G = 0.25, 0.5, 1, 2, 4, 8, 16 V/V + Shutdown ► Fully Differential Outputs ► Gain Error: 0.015% (Max) ► Gain Error Drift: 1 ppm/°C (Max) ► CMRR: 103 dB (Min), G = 16 ► Input Bias Current: 25 pA (Max) ► Input Offset Voltage: 92 μV (Max), G = 16 ► Input Offset Voltage Drift: 1.7 μV/°C (Max), G = 16 ► –3 dB Bandwidth: 4 MHz, G = 16 ► Input Noise Density: 8 nV/√Hz, G = 16 ► Slew Rate: 12 V/μs, G = 1

Download LTC6373HDFM#TRPBF Model

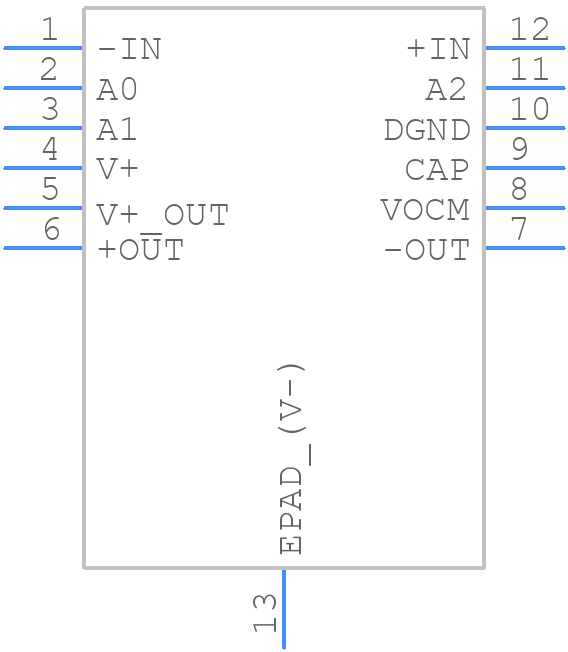

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC6373HDFM#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 12-Lead Plastic DFN (4mm × 4mm)
click to zoom
3D Models
LTC6373HDFM#TRPBF - Analog Devices  - 3D model - Small Outline No-lead - 12-Lead Plastic DFN (4mm × 4mm)
click to zoom

LTC6373HDFM#TRPBF Details

  • Manufacturer Part Number:

    LTC6373HDFM#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1791

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2020-08-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.0005 µA

  • Bandwidth (3dB)-Nom:

    6.5 MHz

  • Common-mode Reject Ratio-Min:

    75 dB

  • Input Offset Current-Max (IIO):

    0.0001 µA

  • Input Offset Voltage-Max:

    1190 µV

  • JESD-30 Code:

    S-PDSO-N12

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.001%

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.16,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    12 V/us

  • Supply Current-Max:

    5.25 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Max:

    16

  • Voltage Gain-Min:

    0.25

  • Width:

    4 mm

LTC6373HDFM#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6373HDFM involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • To ensure stability, it's essential to follow the recommended compensation network and component values provided in the datasheet. Additionally, the input and output capacitors should be selected based on the specific application requirements, and the device should be operated within its recommended operating conditions. It's also important to minimize parasitic inductance and capacitance in the PCB layout.
  • The maximum power dissipation of the LTC6373HDFM is dependent on the operating conditions, such as the ambient temperature and the thermal resistance of the PCB. The datasheet provides a thermal resistance value (θJA) of 45°C/W, which can be used to calculate the maximum power dissipation. As a general rule, the device should be operated at a junction temperature below 125°C to ensure reliability.
  • The LTC6373HDFM is rated for operation up to 125°C junction temperature, making it suitable for high-temperature applications. However, the device's performance and reliability may degrade at higher temperatures. It's essential to follow the recommended operating conditions and to ensure proper thermal management to prevent overheating.
  • To troubleshoot issues with the LTC6373HDFM, start by verifying that the device is properly powered and that the input and output voltages are within the recommended operating range. Check the PCB layout for any signs of damage or contamination, and ensure that the input and output capacitors are properly selected and installed. Use an oscilloscope to monitor the input and output waveforms, and consult the datasheet and application notes for guidance on troubleshooting common issues.
