LTC6373IDFM#PBF - Analog Devices

Description: 36V Fully-Differential Programmable-Gain Instrumentation Amplifier with 25pA Input Bias Current

Download LTC6373IDFM#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

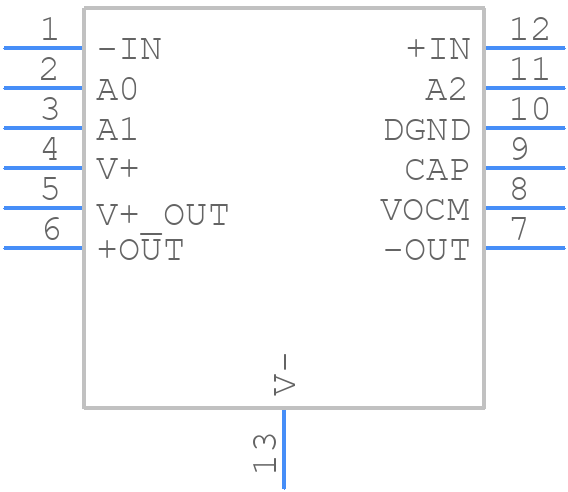

Symbol
LTC6373IDFM#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6373IDFM#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 12-Lead Plastic Side Solderable DF
click to zoom
3D Models
LTC6373IDFM#PBF - Analog Devices - 3D model - Small Outline No-lead - 12-Lead Plastic Side Solderable DF
click to zoom

LTC6373IDFM#PBF Details

  • Manufacturer Part Number:

    LTC6373IDFM#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1791

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2020-08-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.00005 µA

  • Bandwidth (3dB)-Nom:

    6.5 MHz

  • Common-mode Reject Ratio-Min:

    75 dB

  • Input Offset Current-Max (IIO):

    0.00004 µA

  • Input Offset Voltage-Max:

    1190 µV

  • JESD-30 Code:

    S-PDSO-N12

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.001%

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.16,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    12 V/us

  • Supply Current-Max:

    5.25 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Max:

    16

  • Voltage Gain-Min:

    0.25

  • Width:

    4 mm

LTC6373IDFM#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6373 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability in high-gain configurations, it's essential to follow the recommended compensation network values and layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR.
  • The maximum power dissipation of the LTC6373 is dependent on the package type and thermal environment. The maximum power dissipation can be calculated using the formula: Pd = (VIN x IIN) + (VOUT x IOUT). It's essential to ensure that the device is operated within the recommended thermal limits.
  • The LTC6373 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended thermal derating guidelines and ensure proper heat sinking to maintain reliability.
  • To troubleshoot oscillations or instability issues, check the PCB layout for any signs of resonance or noise coupling. Ensure that the input and output capacitors are of high quality and have low ESR. Also, verify that the compensation network values are correct and that the device is operated within the recommended specifications.
