LTC6373SDFM#PBF - Analog Devices

Description: Instrumentation Amplifier 1 Circuit Differential 12-DFN (4x4)

Download LTC6373SDFM#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

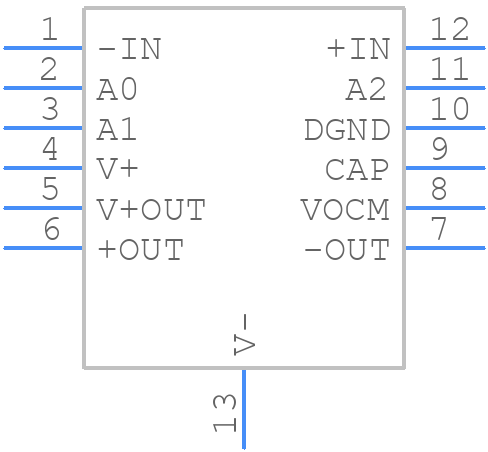

LTC6373SDFM#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6373SDFM#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 12-Lead Plastic DFN (4mm × 4mm)
click to zoom
3D Models
LTC6373SDFM#PBF - Analog Devices - 3D model - Small Outline No-lead - 12-Lead Plastic DFN (4mm × 4mm)
click to zoom

LTC6373SDFM#PBF Details

  • Manufacturer Part Number:

    LTC6373SDFM#PBF

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LFCSP:LEADFRM CHIP SCALE

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    LFCSP:LEADFRM CHIP SCALE

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2020-08-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.00005 µA

  • Bandwidth (3dB)-Nom:

    6.5 MHz

  • Common-mode Reject Ratio-Min:

    75 dB

  • Input Offset Current-Max (IIO):

    0.00004 µA

  • Input Offset Voltage-Max:

    1190 µV

  • JESD-30 Code:

    S-PDSO-N12

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.001%

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.16,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    12 V/us

  • Supply Current-Max:

    5.25 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Max:

    16

  • Voltage Gain-Min:

    0.25

  • Width:

    4 mm

LTC6373SDFM#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6373SDFM involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • To ensure stability, it's essential to follow the recommended compensation network and component values provided in the datasheet. Additionally, the input and output capacitors should be selected based on the specific application requirements, and the device should be operated within its recommended operating conditions. It's also important to minimize parasitic inductance and capacitance in the PCB layout.
  • The maximum power dissipation of the LTC6373SDFM is dependent on the package type and the ambient temperature. The datasheet provides a thermal resistance (θJA) value, which can be used to calculate the maximum power dissipation. The power dissipation can be calculated using the formula: Pd = (TJ - TA) / θJA, where TJ is the junction temperature, TA is the ambient temperature, and θJA is the thermal resistance.
  • The LTC6373SDFM is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may be affected at high temperatures. It's essential to follow the recommended operating conditions and derate the device's power dissipation accordingly. Additionally, the device's thermal management should be carefully considered to ensure reliable operation in high-temperature environments.
  • To troubleshoot issues with the LTC6373SDFM, it's essential to follow a systematic approach. First, verify that the device is properly powered and that the input and output voltages are within the recommended operating range. Next, check the PCB layout and component values to ensure they match the recommended values. Finally, use oscilloscopes and other diagnostic tools to identify any issues with the device's operation, such as oscillations or instability.
