LTC6403IUD-1#PBF - Analog Devices

Description: Linear Technology LTC6403IUD-1#PBF, Differential Amplifier 200MHz Rail to Rail Output 16-Pin QFN

Download LTC6403IUD-1#PBF Model

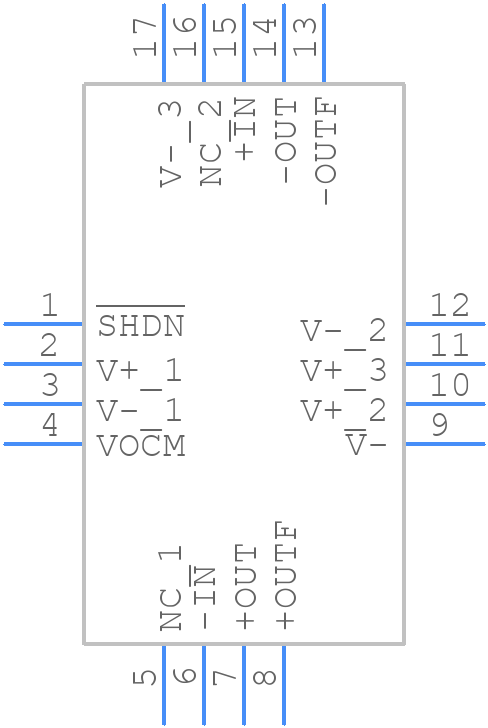

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC6403IUD-1#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UD Package 16-Lead Plastic QFN (3mm × 3mm)
click to zoom
3D Models
LTC6403IUD-1#PBF - Analog Devices  - 3D model - Quad Flat No-Lead - UD Package 16-Lead Plastic QFN (3mm × 3mm)
click to zoom

LTC6403IUD-1#PBF Details

  • Manufacturer Part Number:

    LTC6403IUD-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1691

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    25 µA

  • Bandwidth (3dB)-Nom:

    200 MHz

  • Common-mode Reject Ratio-Min:

    55 dB

  • Common-mode Reject Ratio-Nom:

    72 dB

  • Input Offset Current-Max (IIO):

    5 µA

  • Input Offset Voltage-Max:

    2000 µV

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -5.5 V

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    200 V/us

  • Supply Current-Max:

    12.1 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    200000

  • Wideband:

    YES

  • Width:

    3 mm

LTC6403IUD-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6403 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the input and output connectors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, adding a small resistor (e.g., 10Ω) in series with the output can help dampen oscillations.
  • The maximum power dissipation of the LTC6403 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this can be derated to 0.7W at 85°C ambient temperature.
  • Yes, the LTC6403 can be used with a single supply voltage. However, the input common-mode range is limited to VCC-1.5V to VCC+0.5V. If the input signal is not within this range, an external level-shifting circuit may be required.
  • The gain of the LTC6403 is determined by the ratio of the feedback resistors (Rf and Rg). The gain can be calculated using the formula: Gain = Rf/Rg. For example, if Rf = 2kΩ and Rg = 1kΩ, the gain would be 2.
