LTC6409HUDB#TRPBF - Analog Devices

Description: High Speed Operational Amplifiers 10GHz GBW, 1.1nV/vHz Diff Amp/ADC Drvr

Download LTC6409HUDB#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

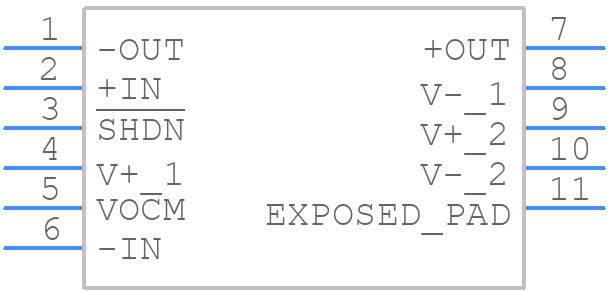

PCB Footprints
LTC6409HUDB#TRPBF - Analog Devices PCB footprint - Other - Other - UDB Package 10-Lead Plastic QFN (3mm × 2mm) (Reference LTC DWG # 05-08-1848 Rev A)
click to zoom
3D Models
LTC6409HUDB#TRPBF - Analog Devices  - 3D model - Other - UDB Package 10-Lead Plastic QFN (3mm × 2mm) (Reference LTC DWG # 05-08-1848 Rev A)
click to zoom

LTC6409HUDB#TRPBF Details

  • Manufacturer Part Number:

    LTC6409HUDB#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 2 MM, 0.75 MM HEIGHT, LEAD FREE, PLASTIC, QFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1848

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    160 µA

  • Common-mode Reject Ratio-Min:

    60 dB

  • Common-mode Reject Ratio-Nom:

    85 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1400 µV

  • JESD-30 Code:

    R-PQCC-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Packing Method:

    TR

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Slew Rate-Nom:

    1720 V/us

  • Supply Current-Max:

    0.058 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Unity Gain BW-Nom:

    8000000

  • Wideband:

    YES

  • Width:

    2 mm

LTC6409HUDB#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6409 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the input and output connectors. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to minimize the loop area of the input and output traces.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable voltage source between 2.7V and 5.5V, and connect the VEE pin to a stable voltage source between -2.7V and -5.5V. Also, ensure that the input common-mode voltage is within the recommended range of 0.5V to 3.5V.
  • The LTC6409 is rated for operation from -40°C to 125°C, but it's recommended to operate within the -20°C to 85°C range for optimal performance and reliability.
  • Yes, the LTC6409 is designed for high-frequency applications up to 1.4GHz. However, it's essential to follow proper PCB layout and design guidelines to minimize parasitic inductance and capacitance, and to ensure proper termination and matching of the input and output signals.
  • Common issues with the LTC6409 can often be attributed to improper PCB layout, inadequate power supply decoupling, or incorrect input and output termination. To troubleshoot, check the PCB layout for any signs of parasitic inductance or capacitance, ensure proper power supply decoupling, and verify that the input and output signals are properly terminated and matched.
