LTC6560IUD#PBF - Analog Devices

Description: IC TRANSIMPEDANCE AMP 16QFN

Download LTC6560IUD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

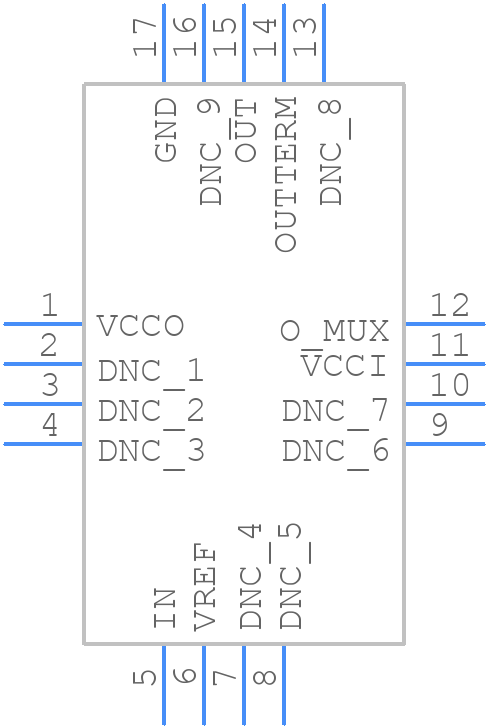

Symbol
LTC6560IUD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6560IUD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - qfn17
click to zoom
3D Models
LTC6560IUD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - qfn17
click to zoom

LTC6560IUD#PBF Details

  • Manufacturer Part Number:

    LTC6560IUD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1700

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

LTC6560IUD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6560IUD#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to keep the input and output traces as short as possible.
  • To optimize the performance of the LTC6560IUD#PBF in a high-frequency application, it's recommended to use a low-ESR capacitor for the power supply, minimize the trace lengths and use a good quality PCB material. Additionally, it's recommended to use a common-mode filter or a ferrite bead to reduce the high-frequency noise.
  • The maximum operating temperature range for the LTC6560IUD#PBF is -40°C to 125°C. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • To troubleshoot common issues with the LTC6560IUD#PBF, it's recommended to check the power supply voltage, ensure that the input and output capacitors are properly sized, and verify that the device is properly biased. Additionally, it's recommended to use a scope to check for oscillations or instability, and to consult the datasheet and application notes for troubleshooting guidelines.
  • The recommended power-up sequence for the LTC6560IUD#PBF is to first apply the power supply voltage, followed by the input signal. It's recommended to ensure that the power supply voltage is stable and within the recommended range before applying the input signal.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6560IUD#PBF Overview

Use the download button to access the LTC6560IUD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC65, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
