LTC6563HUDDM#PBF - Analog Devices

Description: Four-Channel Transimpedance Amplifier with Output Multiplexing

Download LTC6563HUDDM#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

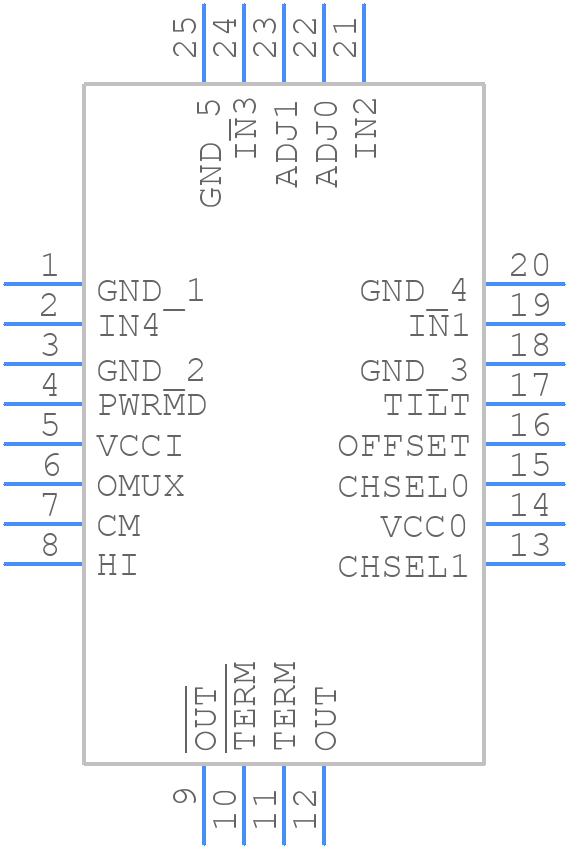

Symbol
LTC6563HUDDM#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6563HUDDM#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UDDM Package 24-Lead Plastic Side Solderable QFN (3mm × 5mm) (Reference LTC DWG # 05-08-1795 Rev Ø)
click to zoom
3D Models
LTC6563HUDDM#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UDDM Package 24-Lead Plastic Side Solderable QFN (3mm × 5mm) (Reference LTC DWG # 05-08-1795 Rev Ø)
click to zoom

LTC6563HUDDM#PBF Details

  • Manufacturer Part Number:

    LTC6563HUDDM#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1795

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Frequency Compensation:

    YES

  • JESD-30 Code:

    R-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    3000 V/us

  • Supply Current-Max:

    40.4 mA

  • Supply Voltage Limit-Max:

    3.6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Wideband:

    NO

  • Width:

    3 mm

LTC6563HUDDM#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the LTC6563's performance. Analog Devices recommends a 4-layer board with a solid ground plane, and to keep the analog and digital grounds separate. The input and output capacitors should be placed close to the IC, and the feedback resistors should be placed close to the output pins. A detailed layout guide can be found in the LTC6563's application note.
  • The choice of input and output capacitors depends on the specific application and the desired performance. In general, low-ESR capacitors with a high ripple current rating are recommended. For the input capacitor, a value of 10uF to 22uF is typical, while for the output capacitor, a value of 22uF to 47uF is typical. The capacitor's voltage rating should be at least 1.5 times the maximum input voltage.
  • The maximum output current of the LTC6563 is 3A. However, the output current should be derated based on the ambient temperature and the input voltage. A detailed derating curve can be found in the datasheet.
  • The output voltage of the LTC6563 can be adjusted by changing the feedback resistors R1 and R2. The output voltage is determined by the ratio of R1 to R2, and can be calculated using the formula Vout = 0.8V x (1 + R2/R1). The resistors should be chosen to be within the recommended range of 1kΩ to 100kΩ.
  • The EN (enable) pin is used to turn the regulator on or off. When the EN pin is high, the regulator is enabled, and when it is low, the regulator is disabled. This pin can be used to implement power sequencing or to reduce power consumption in standby mode.
