LTC6563HUDDM#TRPBF - Analog Devices

Description: Four-Channel Transimpedance Amplifier with Output Multiplexing

Download LTC6563HUDDM#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

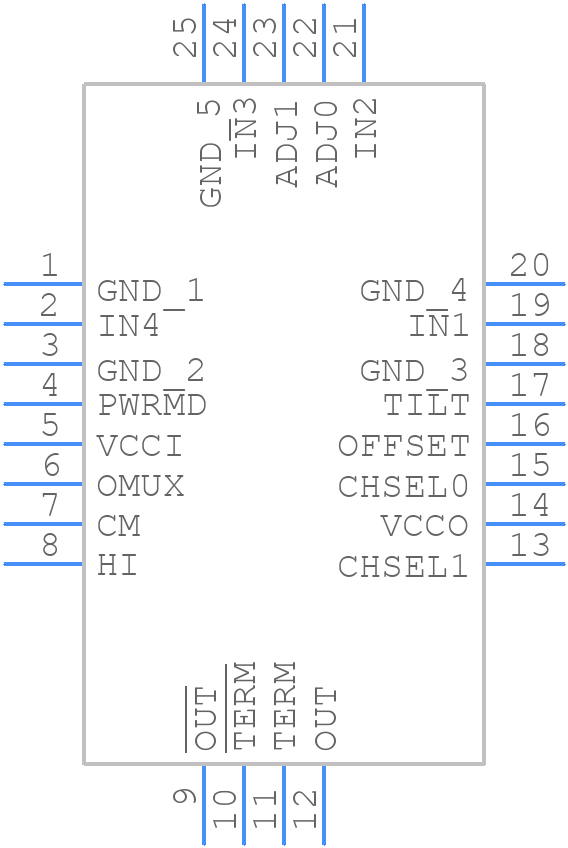

LTC6563HUDDM#TRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UDDM Package 24-Lead Plastic Side Solderable QFN (3mm × 5mm) (Reference LTC DWG # 05-08-1795 Rev Ø)
click to zoom
3D Models
LTC6563HUDDM#TRPBF - Analog Devices  - 3D model - Quad Flat No-Lead - UDDM Package 24-Lead Plastic Side Solderable QFN (3mm × 5mm) (Reference LTC DWG # 05-08-1795 Rev Ø)
click to zoom

LTC6563HUDDM#TRPBF Details

  • Manufacturer Part Number:

    LTC6563HUDDM#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1795

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Frequency Compensation:

    YES

  • JESD-30 Code:

    R-PQCC-N24

  • Length:

    5 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    3000 V/us

  • Supply Current-Max:

    40.4 mA

  • Supply Voltage Limit-Max:

    3.6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Wideband:

    NO

  • Width:

    3 mm

LTC6563HUDDM#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the LTC6563HUDDM#TRPBF. It's recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and separate, using a solid ground plane, and placing the bypass capacitors close to the device. Additionally, it's a good idea to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The choice of input and output capacitors depends on the specific application and the desired performance. In general, it's recommended to use low-ESR capacitors with a high ripple current rating. For the input capacitor, a value of 10uF to 22uF is typical, while for the output capacitor, a value of 22uF to 47uF is typical. It's also important to consider the capacitor's voltage rating, temperature range, and physical size.
  • The LTC6563HUDDM#TRPBF is rated for operation up to 125°C ambient temperature. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation. It's also important to consider the thermal resistance of the package and the PCB, as well as the airflow and heat sinking in the system.
  • Troubleshooting common issues like oscillation or instability requires a systematic approach. First, check the PCB layout and ensure that it follows the recommended guidelines. Next, verify that the input and output capacitors are properly selected and installed. Then, check the voltage and current waveforms using an oscilloscope to identify any anomalies. Finally, consult the datasheet and application notes for specific troubleshooting guidelines and techniques.
  • The choice of inductor value and type can significantly impact the performance of the LTC6563HUDDM#TRPBF. A different inductor value can affect the converter's resonant frequency, efficiency, and stability. It's recommended to use an inductor with a high saturation current rating, low DC resistance, and a shielded construction to minimize EMI. Consult the datasheet and application notes for specific inductor selection guidelines and recommendations.
