LTC6655BHMS8-2.048#PBF - Analog Devices

Description: Voltage References Ultra Low Noise, 2.048V Precision Voltage Reference

Download LTC6655BHMS8-2.048#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

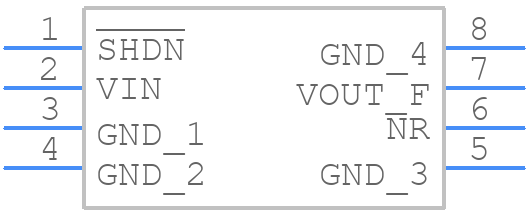

Symbol
LTC6655BHMS8-2.048#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6655BHMS8-2.048#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP
click to zoom
3D Models
LTC6655BHMS8-2.048#PBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP
click to zoom

LTC6655BHMS8-2.048#PBF Details

  • Manufacturer Part Number:

    LTC6655BHMS8-2.048#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    2.0485 V

  • Output Voltage-Min:

    2.0474 V

  • Output Voltage-Nom:

    2.048 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    7.5 mA

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temp Coef of Voltage-Max:

    2 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.025%

  • Width:

    3 mm

LTC6655BHMS8-2.048#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6655BHMS8-2.048#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals.
  • To ensure proper calibration, follow the recommended calibration procedure outlined in the datasheet, which involves applying a specific voltage to the CAL pin and monitoring the output voltage. It's also important to use a high-precision voltage source and a calibrated multimeter for accurate measurements.
  • The LTC6655BHMS8-2.048#PBF has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, use a thermally conductive PCB material, and avoid overheating the device. Additionally, consider using thermal simulation tools to model the thermal performance of the device in your specific application.
  • The LTC6655BHMS8-2.048#PBF is not specifically designed for radiation-hardened applications. However, Analog Devices Inc. does offer radiation-hardened versions of the device, such as the LTC6655RHMS8-2.048#PBF, which is designed to meet the requirements of aerospace and defense applications.
  • To ensure electromagnetic compatibility, follow proper PCB layout and shielding techniques, use a metal shield around the device, and consider using EMI filters or ferrite beads on the input and output lines. Additionally, ensure that the device is properly decoupled and bypassed to minimize noise and radiation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6655BHMS8-2.048#PBF Overview

Use the download button to access the LTC6655BHMS8-2.048#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC66, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
