LTC6655CHMS8-5#PBF - Analog Devices

Description: Voltage References Ultra Low Noise, 5V Precision Voltage Reference

Download LTC6655CHMS8-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

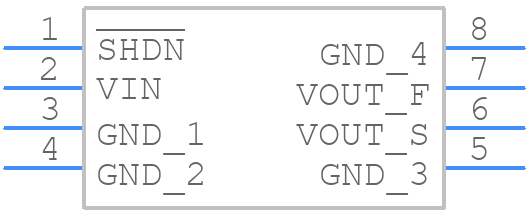

Symbol
LTC6655CHMS8-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6655CHMS8-5#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LTC6655CHMS8-5#PBF
click to zoom
3D Models
LTC6655CHMS8-5#PBF - Analog Devices - 3D model - Small Outline Packages - LTC6655CHMS8-5#PBF
click to zoom

LTC6655CHMS8-5#PBF Details

  • Manufacturer Part Number:

    LTC6655CHMS8-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.0025 V

  • Output Voltage-Min:

    4.9975 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    7.5 mA

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    5.197 V

  • Supply Voltage-Nom (Vsup):

    5.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temp Coef of Voltage-Max:

    5 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.05%

  • Width:

    3 mm

LTC6655CHMS8-5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6655CHMS8-5 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the voltage reference output and the ADC input. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the accuracy of the voltage reference output, it's essential to follow proper PCB layout guidelines, use a low-noise power supply, and minimize the thermal gradient across the device. Additionally, the device should be operated within its specified temperature range, and the output should be buffered with a low-dropout regulator if it's not being used directly.
  • The recommended input voltage range for the LTC6655CHMS8-5 is 4.5V to 5.5V. Operating the device outside of this range may affect its performance and accuracy.
  • To handle the noise sensitivity of the LTC6655CHMS8-5, it's recommended to use a low-noise power supply, add decoupling capacitors close to the device, and use a shielded cable for the voltage reference output. Additionally, the device should be placed away from noisy components and high-current switching devices.
  • The thermal resistance of the LTC6655CHMS8-5 package is typically around 30°C/W. This means that for every watt of power dissipated, the junction temperature will rise by 30°C above the ambient temperature.
