LTC6655LNBHLS8-2.5#PBF - Analog Devices

Description: 0.25ppm Noise, Low Drift Precision References

Download LTC6655LNBHLS8-2.5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

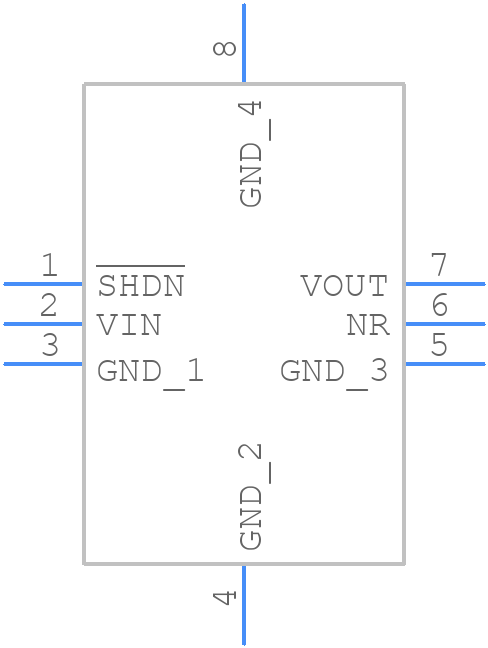

LTC6655LNBHLS8-2.5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6655LNBHLS8-2.5#PBF - Analog Devices PCB footprint - Other - Other - LS8 Package 8-Pin Leadless Chip Carrier (5mm × 5mm)_2024-1
click to zoom
3D Models
LTC6655LNBHLS8-2.5#PBF - Analog Devices - 3D model - Other - LS8 Package 8-Pin Leadless Chip Carrier (5mm × 5mm)_2024-1
click to zoom

LTC6655LNBHLS8-2.5#PBF Details

  • Manufacturer Part Number:

    LTC6655LNBHLS8-2.5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1852

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-XQCC-N8

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.005 A

  • Output Voltage-Max:

    2.500625 V

  • Output Voltage-Min:

    2.499375 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC8,.2SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.55 mm

  • Supply Current-Max (Isup):

    7.5 mA

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temp Coef of Voltage-Max:

    2 ppm/°C

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.025%

  • Width:

    5 mm

LTC6655LNBHLS8-2.5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6655LNBHLS8-2.5 involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended capacitor values and types in the datasheet, and keep the output capacitor ESR low. Also, avoid using capacitors with high ESL (Equivalent Series Inductance) and ensure the PCB layout is well-designed to minimize parasitic inductance.
  • The maximum output current of the LTC6655LNBHLS8-2.5 is 20mA. However, it's recommended to derate the output current to 15mA or less to ensure reliable operation and to prevent overheating.
  • The LTC6655LNBHLS8-2.5 is rated for operation up to 125°C, but it's recommended to derate the output current and voltage at higher temperatures to ensure reliable operation. Also, make sure to follow proper thermal management and heat sinking techniques to prevent overheating.
  • To troubleshoot issues with the LTC6655LNBHLS8-2.5, start by checking the input voltage, output voltage, and output current. Use an oscilloscope to check for oscillations or noise on the output. Also, verify that the PCB layout and component values match the recommended values in the datasheet.
