LTC6655LNBHLS8-4.096#PBF - Analog Devices

Description: 0.25ppm Noise, Low Drift Precision References

Download LTC6655LNBHLS8-4.096#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

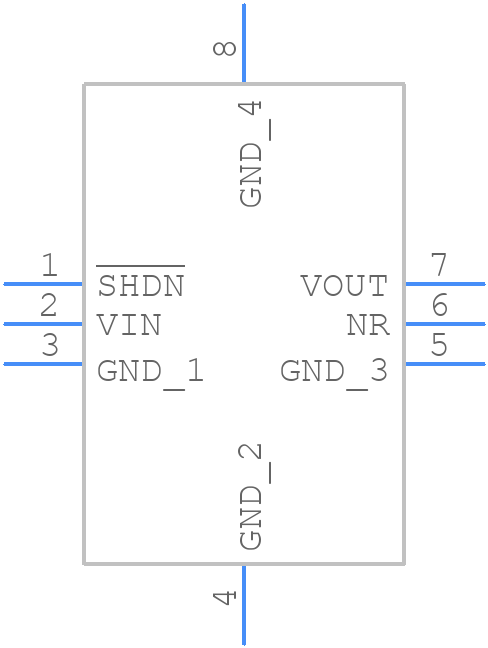

Symbol
LTC6655LNBHLS8-4.096#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6655LNBHLS8-4.096#PBF - Analog Devices PCB footprint - Other - Other - LS8 Package 8-Pin Leadless Chip Carrier (5mm × 5mm)_2024-3
click to zoom
3D Models
LTC6655LNBHLS8-4.096#PBF - Analog Devices - 3D model - Other - LS8 Package 8-Pin Leadless Chip Carrier (5mm × 5mm)_2024-3
click to zoom

LTC6655LNBHLS8-4.096#PBF Details

  • Manufacturer Part Number:

    LTC6655LNBHLS8-4.096#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1852

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-XQCC-N8

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.005 A

  • Output Voltage-Max:

    4.097024 V

  • Output Voltage-Min:

    4.094976 V

  • Output Voltage-Nom:

    4.096 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC8,.2SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.55 mm

  • Supply Current-Max (Isup):

    7.5 mA

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    4.596 V

  • Supply Voltage-Nom (Vsup):

    4.596 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temp Coef of Voltage-Max:

    2 ppm/°C

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.025%

  • Width:

    5 mm

LTC6655LNBHLS8-4.096#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6655LNBHLS8-4.096#PBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure accurate voltage regulation, make sure to follow the recommended operating conditions, use a stable input voltage, and minimize noise and ripple on the input and output lines. Also, use a high-quality output capacitor with low ESR and a suitable value (e.g., 10uF) to filter out noise and ensure stability.
  • The maximum current draw from the output of the LTC6655LNBHLS8-4.096#PBF is 20mA. Exceeding this current limit may cause the device to overheat or malfunction.
  • The LTC6655LNBHLS8-4.096#PBF is rated for operation from -40°C to 125°C. However, the device's performance and accuracy may degrade at high temperatures. It's essential to follow the recommended operating conditions and consider thermal management techniques to ensure reliable operation in high-temperature environments.
  • To troubleshoot issues with the LTC6655LNBHLS8-4.096#PBF, start by checking the input voltage, output voltage, and current draw. Verify that the device is properly connected and that the PCB layout is correct. Use an oscilloscope to check for noise and ripple on the input and output lines. Consult the datasheet and application notes for guidance on troubleshooting common issues.
