LTC6752HMS8-2#TRPBF - Analog Devices

Description: Analog Comparators 280MHz CMOS Comparator with Latch, Output Supply and Shutdown

Download LTC6752HMS8-2#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

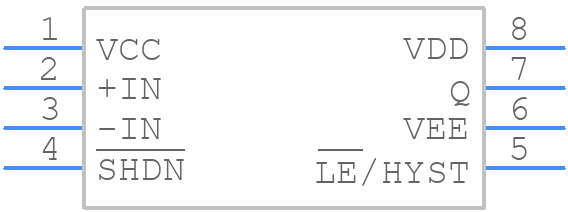

Symbol
LTC6752HMS8-2#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6752HMS8-2#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP
click to zoom
3D Models
LTC6752HMS8-2#TRPBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP
click to zoom

LTC6752HMS8-2#TRPBF Details

  • Manufacturer Part Number:

    LTC6752HMS8-2#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    2.1 µA

  • Bias Current-Max (IIB) @25C:

    1.25 µA

  • Input Offset Voltage-Max:

    8500 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    2.9 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC6752HMS8-2#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6752HMS8-2#TRPBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure reliable operation over the full temperature range, it's essential to follow proper thermal design and layout practices, such as providing adequate heat sinking, using thermal vias, and keeping the device away from heat sources. Additionally, ensure that the device is operated within its specified voltage and current limits.
  • Not using the recommended input and output capacitors can lead to reduced performance, increased noise, and potential instability. The capacitors help to filter out noise, reduce ringing, and improve the overall signal integrity. Omitting them can result in reduced accuracy, increased jitter, and potential device failure.
  • To troubleshoot issues with the LTC6752HMS8-2#TRPBF, start by verifying that the device is properly powered, and the input and output voltages are within the specified ranges. Check for proper PCB layout, decoupling, and thermal design. Use an oscilloscope to monitor the input and output signals, and look for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • Exceeding the maximum ratings of the LTC6752HMS8-2#TRPBF can result in permanent damage to the device, reduced reliability, or even catastrophic failure. It's essential to ensure that the device is operated within its specified voltage, current, and power dissipation limits to maintain reliable operation and prevent damage.
