LTC6752IUD-3#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC6752IUD-3#PBF - COMPARATOR, SINGLE, 3.4NS, QFN-12

Download LTC6752IUD-3#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

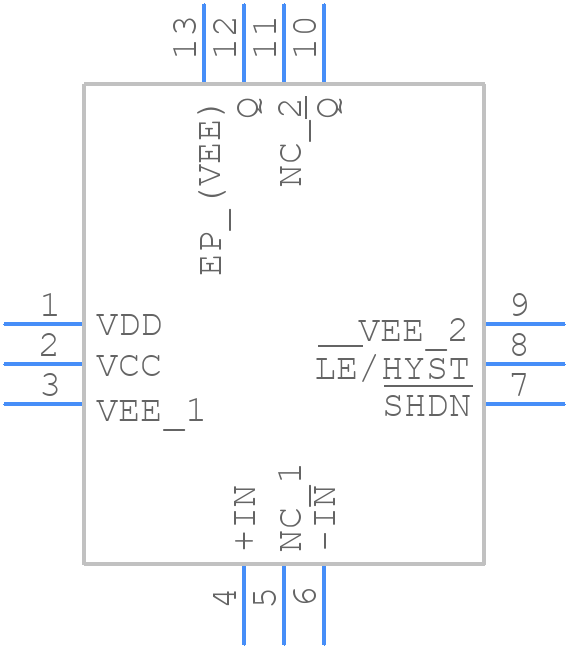

LTC6752IUD-3#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6752IUD-3#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UD Package 12-Lead Plastic QFN (3mm × 3mm)
click to zoom
3D Models
LTC6752IUD-3#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UD Package 12-Lead Plastic QFN (3mm × 3mm)
click to zoom

LTC6752IUD-3#PBF Details

  • Manufacturer Part Number:

    LTC6752IUD-3#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1855

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    2.1 µA

  • Bias Current-Max (IIB) @25C:

    1.25 µA

  • Input Offset Voltage-Max:

    8500 µV

  • JESD-30 Code:

    S-PQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Response Time-Nom:

    2.9 ns

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

LTC6752IUD-3#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6752IUD-3#PBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply bypass capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, ensure that the output capacitor is within the recommended range, the input voltage is within the specified range, and the device is operated within the recommended temperature range. Additionally, a minimum of 10uF output capacitance is recommended for stability.
  • The maximum power dissipation of the LTC6752IUD-3#PBF is 1.4W. However, this can be affected by the ambient temperature, PCB layout, and airflow. It's essential to ensure that the device is operated within the recommended temperature range and that adequate heat sinking is provided.
  • The LTC6752IUD-3#PBF is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It's essential to ensure that the device is operated within the recommended temperature range and that adequate heat sinking is provided.
  • To troubleshoot issues with the LTC6752IUD-3#PBF, start by verifying that the input voltage and output load are within the recommended specifications. Check for proper PCB layout, decoupling, and bypassing. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for further guidance.
