LTC6754HUD#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC6754HUD#PBF - Analogue Comparator, Rail-to-Rail, High Speed, 1 Comparator, 2.4V to 5.25V, QFN, 12 Pins

Download LTC6754HUD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

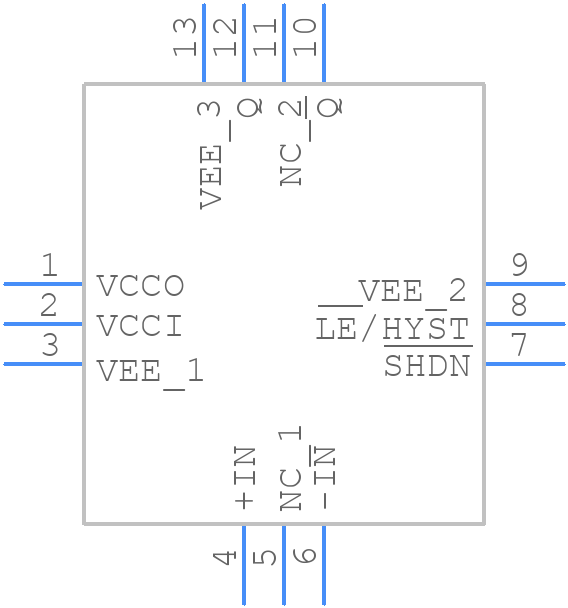

LTC6754HUD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6754HUD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UD Package 12-Lead Plastic QFN (3mm × 3mm)-1
click to zoom
3D Models
LTC6754HUD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UD Package 12-Lead Plastic QFN (3mm × 3mm)-1
click to zoom

LTC6754HUD#PBF Details

  • Manufacturer Part Number:

    LTC6754HUD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1855

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    2.3 µA

  • Input Offset Voltage-Max:

    7500 µV

  • JESD-30 Code:

    S-PQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    TOTEM POLE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Response Time-Nom:

    2 ns

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

LTC6754HUD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6754HUD involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, consider adding a small capacitor (e.g., 10nF) between the VIN and GND pins to improve stability.
  • The maximum ambient temperature range for the LTC6754HUD is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, so it's recommended to keep the ambient temperature below 85°C for optimal performance.
  • Yes, the LTC6754HUD is suitable for high-reliability and high-temperature applications. However, it's recommended to follow the recommended operating conditions and derate the device's performance accordingly. Additionally, consider using a higher-grade version of the device, such as the LTC6754HUD#TRPBF, which is designed for high-reliability applications.
  • To troubleshoot issues with the LTC6754HUD, start by checking the input voltage, output voltage, and current consumption. Use an oscilloscope to check for any oscillations or noise on the input and output lines. Also, verify that the device is properly soldered and that the PCB layout is correct. If the issue persists, consider consulting the datasheet and application notes or contacting Analog Devices' technical support.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6754HUD#PBF Overview

Use the download button to access the LTC6754HUD#PBF schematic symbol, PCB footprint, and 3D model.
