LTC6754IUD#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC6754IUD#PBF - Analogue Comparator, Rail-to-Rail, High Speed, 1 Comparator, 2.4V to 5.25V, QFN, 12 Pins

Download LTC6754IUD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

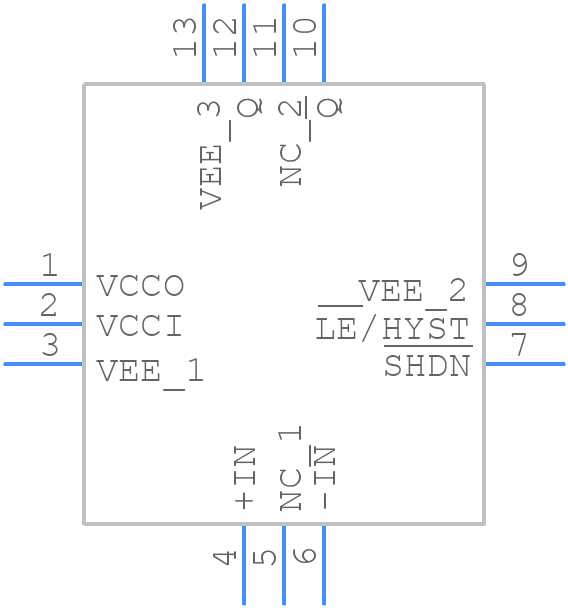

LTC6754IUD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6754IUD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 12-Lead Plastic QFN (3mm × 3mm)
click to zoom
3D Models
LTC6754IUD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 12-Lead Plastic QFN (3mm × 3mm)
click to zoom

LTC6754IUD#PBF Details

  • Manufacturer Part Number:

    LTC6754IUD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1855

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    2.3 µA

  • Input Offset Voltage-Max:

    7500 µV

  • JESD-30 Code:

    S-PQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    TOTEM POLE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Response Time-Nom:

    2 ns

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

LTC6754IUD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6754IUD involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, ensure that the output capacitor is within the recommended range, the input voltage is within the specified range, and the device is operated within the recommended temperature range. Additionally, a minimum of 10uF output capacitance is recommended for stability.
  • The maximum power dissipation of the LTC6754IUD is 1.4W. However, this can be affected by the ambient temperature, PCB layout, and airflow. It's essential to ensure proper thermal management to prevent overheating.
  • The LTC6754IUD is rated for operation from -40°C to 125°C. However, the device's performance and reliability may be affected at high temperatures. It's essential to consider the device's thermal characteristics and ensure proper thermal management in high-temperature applications.
  • To troubleshoot issues with the LTC6754IUD, start by verifying the input voltage, output voltage, and output current. Check for proper PCB layout, decoupling, and thermal management. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for guidance on troubleshooting common issues.
