LTC6801HG#3ZZPBF - Analog Devices

Description: Independent Multicell Battery Stack Fault Monitor

Download LTC6801HG#3ZZPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

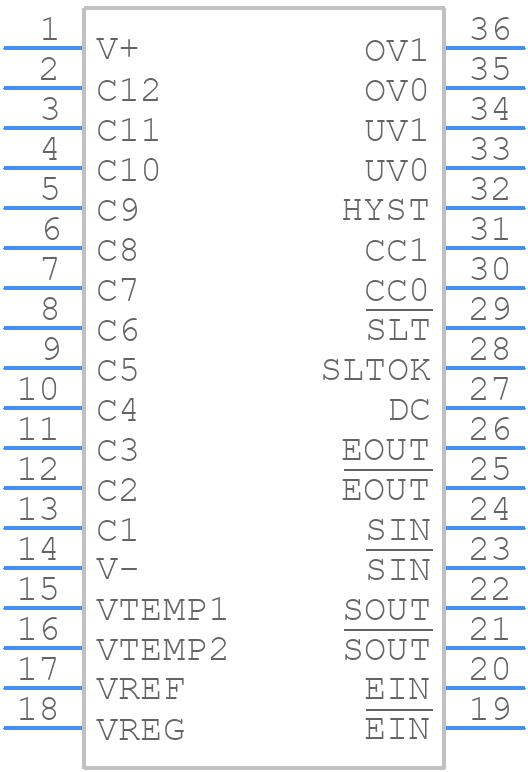

LTC6801HG#3ZZPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6801HG#3ZZPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SSOP 5.3 MM_2023
click to zoom
3D Models
LTC6801HG#3ZZPBF - Analog Devices - 3D model - Small Outline Packages - SSOP 5.3 MM_2023
click to zoom

LTC6801HG#3ZZPBF Details

  • Manufacturer Part Number:

    LTC6801HG#3ZZPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    SSOP-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    05-08-1640 (G36)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-09-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP36,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    2 mm

  • Supply Current-Max (Isup):

    1.1 mA

  • Supply Voltage-Max (Vsup):

    50 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Supply Voltage-Nom (Vsup):

    43.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    2.871

  • Width:

    5.3 mm

LTC6801HG#3ZZPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6801HG involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the battery pack to minimize noise and voltage drops. A 4-layer PCB with a dedicated analog ground layer is recommended.
  • Calibration involves writing a calibration code to the device's EEPROM. The calibration code is calculated based on the device's internal voltage reference and the gain of the voltage measurement circuit. The datasheet provides a formula to calculate the calibration code, and Analog Devices also provides a calibration tool to simplify the process.
  • Up to 256 LTC6801HG devices can be connected in a daisy-chain configuration, allowing for the monitoring of up to 4096 cells. However, the maximum number of devices that can be connected depends on the communication speed, cable length, and noise environment.
  • The LTC6801HG provides a balancing function that can be used to balance the state of charge of individual cells in a battery pack. The device can also be used to control external balancing circuits or chargers. However, the device itself does not provide charging or discharging functionality.
  • The typical power consumption of the LTC6801HG is around 1.5mA per device, depending on the communication speed and the number of cells being monitored. The device also has a low-power sleep mode that can reduce power consumption to around 10uA.
