LTC6802IG-1#TRPBF - Analog Devices

Description: 12 Channel Multicell Battery Monitor with Daisy Chain Interface, Generation 1

Download LTC6802IG-1#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

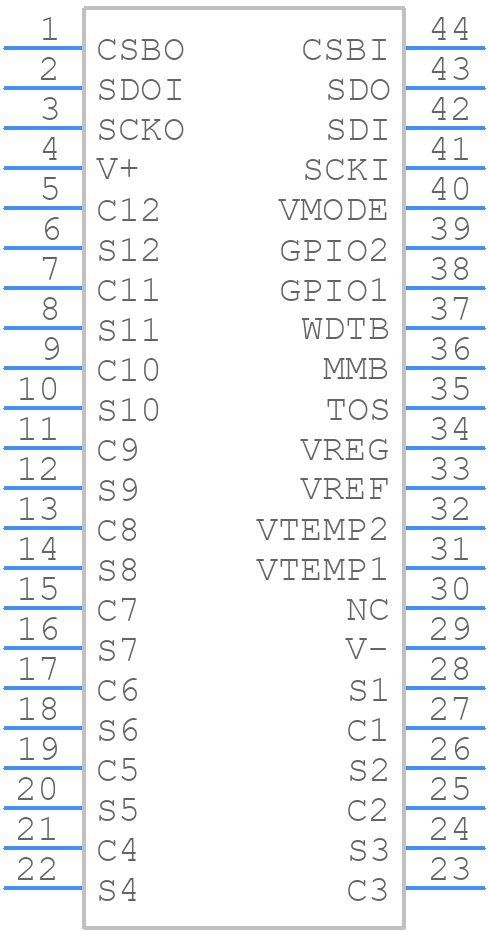

Symbol
LTC6802IG-1#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6802IG-1#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - G Package 44-Lead Plastic SSOP (5.3mm) (Reference LTC DWG # 05-08-1754 Rev A)_2021
click to zoom
3D Models
LTC6802IG-1#TRPBF - Analog Devices - 3D model - Small Outline Packages - G Package 44-Lead Plastic SSOP (5.3mm) (Reference LTC DWG # 05-08-1754 Rev A)_2021
click to zoom

LTC6802IG-1#TRPBF Details

  • Manufacturer Part Number:

    LTC6802IG-1#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SSOP-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    05-08-1754

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP44,.3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max (Isup):

    1.2 mA

  • Supply Voltage-Max (Vsup):

    50 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    43.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

LTC6802IG-1#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for accurate measurements. It is recommended to follow a 4-layer stack-up with a solid ground plane, and to keep the analog and digital signals separate. The datasheet provides a recommended layout, but it's also a good idea to consult with experienced engineers or use online resources for guidance.
  • The LTC6802IG-1#TRPBF has an internal calibration mechanism, but it's still important to perform an external calibration to ensure accuracy. This can be done by applying a known voltage to the input pins and adjusting the calibration registers accordingly. The datasheet provides more information on the calibration process.
  • The LTC6802IG-1#TRPBF can be daisy-chained together to monitor multiple battery stacks. The maximum number of devices that can be connected in this way is 256, but it's recommended to limit the number of devices to 12-16 to ensure reliable communication.
  • The LTC6802IG-1#TRPBF has built-in error detection and fault handling mechanisms. It's important to regularly check the status registers for errors and faults, and to implement a robust error handling routine in the system firmware. The datasheet provides more information on the error detection and fault handling mechanisms.
  • The recommended power-up sequence for the LTC6802IG-1#TRPBF is to first power up the VCC supply, followed by the VIO supply. This ensures that the internal regulators are properly initialized and that the device is configured correctly.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6802IG-1#TRPBF Overview

Use the download button to access the LTC6802IG-1#TRPBF schematic symbol, PCB footprint, and 3D model.
