Part Image

LTC6802IG-2#3ZZPBF - Analog Devices

Description: 12 Channel Multicell Battery Monitor with Addressable Interface, Generaion 1

Download LTC6802IG-2#3ZZPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

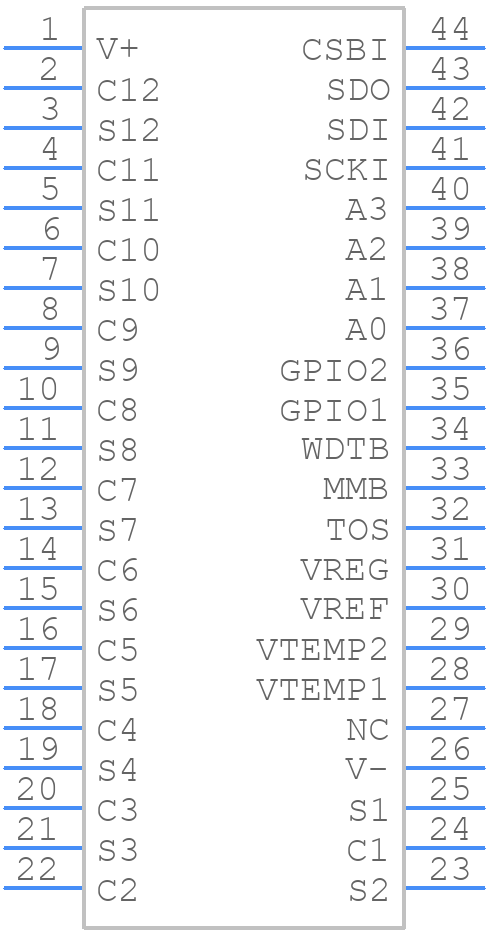

Symbol
LTC6802IG-2#3ZZPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6802IG-2#3ZZPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - G Package 44-Lead Plastic SSOP (5.3mm) (Reference LTC DWG # 05-08-1754 Rev A)_2021
click to zoom
3D Models
LTC6802IG-2#3ZZPBF - Analog Devices - 3D model - Small Outline Packages - G Package 44-Lead Plastic SSOP (5.3mm) (Reference LTC DWG # 05-08-1754 Rev A)_2021
click to zoom

LTC6802IG-2#3ZZPBF Details

  • Manufacturer Part Number:

    LTC6802IG-2#3ZZPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SSOP-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    05-08-1754

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-05-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP44,.3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    50 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    43.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

LTC6802IG-2#3ZZPBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LTC6802IG-2#3ZZPBF can be found in the application note AN106: PCB Layout Considerations for the LTC6802-1 and LTC6802-2. It provides guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The LTC6802IG-2#3ZZPBF requires a one-time calibration process to ensure accurate voltage measurements. The calibration process involves writing a calibration code to the device's internal registers. The calibration code can be calculated using the formula provided in the datasheet, or by using the LTC6802 calibration software tool available on the Analog Devices website.
  • Up to 256 LTC6802IG-2#3ZZPBF devices can be daisy-chained together using the SPI interface, allowing for the monitoring of up to 12,288 individual battery cells.
  • The LTC6802IG-2#3ZZPBF provides a cell balancing function that allows for the equalization of individual battery cell voltages in a pack. The device can be configured to balance cells using an external balancing circuit, and can also provide a balancing current limit to prevent over-balancing.
  • The typical power consumption of the LTC6802IG-2#3ZZPBF is around 1.5mA per device, making it suitable for use in battery-powered systems where power consumption is a concern.
