LTC6803HG-1#PBF - Analog Devices

Description: Measures Up to 12 Battery Cells in Series n Stackable Architecture n Supports Multiple Battery Chemistries and Supercapacitors n Serial Interface Daisy Chains to Adjacent Devices n 0.25% Maximum Total Measurement Error n Engineered for ISO26262 Compliant Systems n 13ms to Measure All Cells in a System n Passive Cell Balancing: – Integrated Cell Balancing MOSFETs – Ability to Drive External Balancing MOSFETs n Onboard Temperature Sensor and Thermistor Inputs n 1MHz Serial Interface with Packet Er

Download LTC6803HG-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

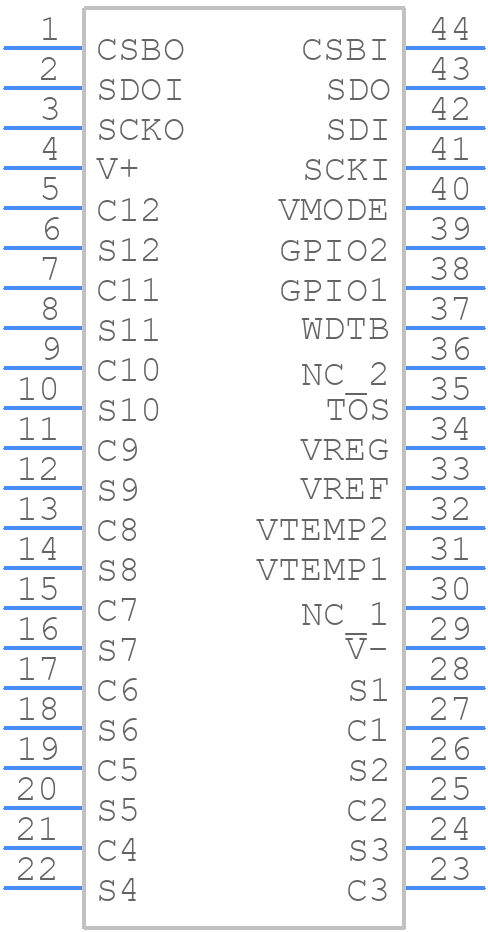

LTC6803HG-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6803HG-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - G Package 44-Lead Plastic SSOP (5.3mm) (Reference LTC DWG # 05-08-1754 Rev Ø)
click to zoom
3D Models
LTC6803HG-1#PBF - Analog Devices - 3D model - Small Outline Packages - G Package 44-Lead Plastic SSOP (5.3mm) (Reference LTC DWG # 05-08-1754 Rev Ø)
click to zoom

LTC6803HG-1#PBF Details

  • Manufacturer Part Number:

    LTC6803HG-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    5.30 MM, LEAD FREE, PLASTIC, SSOP-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    05-08-1754

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY MONITOR

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    55 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    43.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

LTC6803HG-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the LTC6803HG-1#PBF. It's recommended to follow a star-ground configuration, keep the analog and digital grounds separate, and use a solid ground plane to reduce noise. Additionally, place the IC close to the battery pack and use short, shielded cables to connect to the battery cells.
  • Calibration is not required for the LTC6803HG-1#PBF, as it has an internal voltage reference. However, it's recommended to perform a system-level calibration to account for any errors in the PCB layout, component tolerances, and temperature effects. This can be done by measuring the voltage of a known reference source and adjusting the system accordingly.
  • Up to 256 LTC6803HG-1#PBF devices can be daisy-chained together using the SPI interface, allowing for the monitoring of up to 12,288 battery cells.
  • The LTC6803HG-1#PBF provides a balancing function that can be used to control external balancing FETs or resistors. It also has a charge/discharge control function that can be used to control external switches or FETs. However, it does not have built-in charging or balancing circuitry, and these functions must be implemented externally.
  • The typical power consumption of the LTC6803HG-1#PBF is around 1.5mA per device, although this can vary depending on the operating frequency, voltage, and other factors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6803HG-1#PBF Overview

Use the download button to access the LTC6803HG-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC68, or try a keyword search, such as Power Management Circuits
