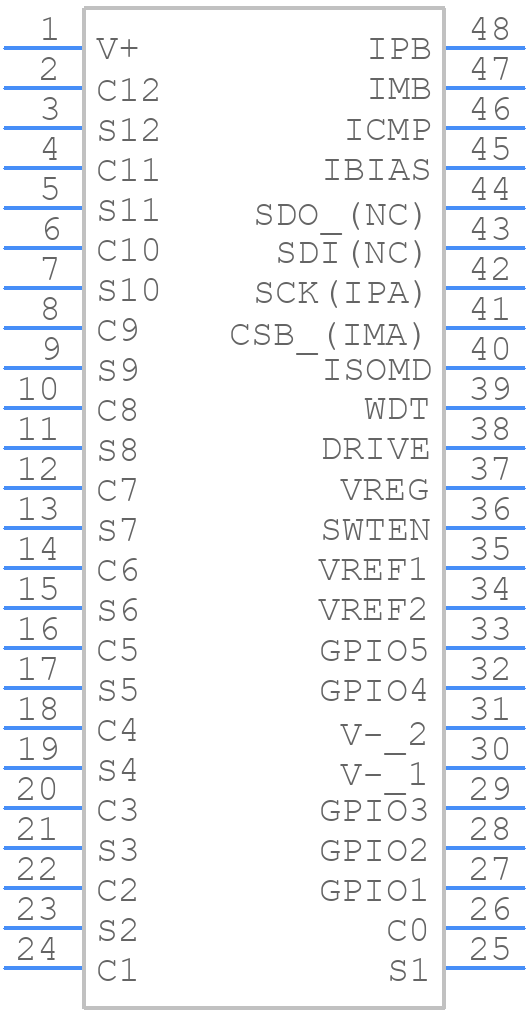

LTC6804HG-1#PBF - Analog Devices

LTC6804HG-1#PBF Details

• Manufacturer Part Number:

  LTC6804HG-1#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  End Of Life

• Package Description:

  SSOP-8

• Pin Count:

  48

• Manufacturer Package Code:

  05-08-1887

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Additional Feature:

  THRESHOLD VOLTAGE=1.5V

• Adjustable Threshold:

  YES

• Analog IC - Other Type:

  BATTERY MONITOR

• JESD-30 Code:

  R-PDSO-G48

• JESD-609 Code:

  e3

• Length:

  12.8 mm

• Moisture Sensitivity Level:

  3

• Number of Channels:

  5

• Number of Functions:

  1

• Number of Terminals:

  48

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  2 mm

• Supply Voltage-Max (Vsup):

  55 V

• Supply Voltage-Min (Vsup):

  11 V

• Supply Voltage-Nom (Vsup):

  40 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Threshold Voltage-Nom:

  +1.5V

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  5.3 mm
